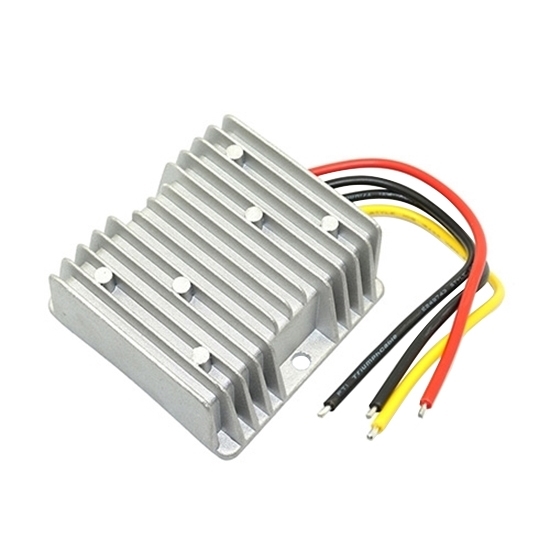

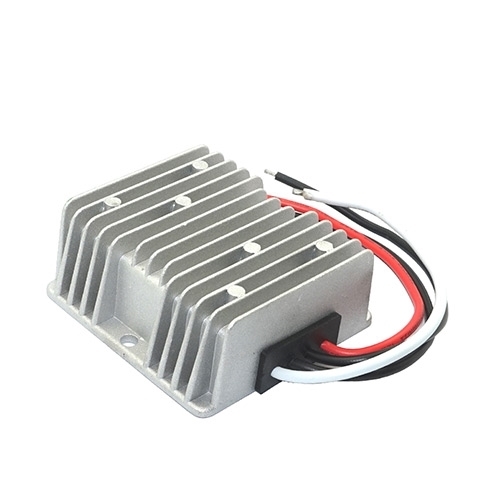

DC-DC Boost Converter, 12V to 24V

This series of DC-DC boost converters with wide input voltage range high efficiency up to 96%. They are designed to step up the input rated voltage 12V DC to 24V DC output voltage, and different models can be chosen to meet your applications.

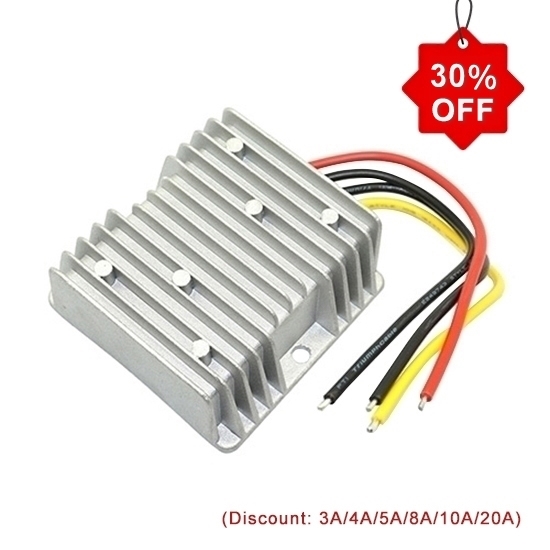

Note*: Get a special 30% off when you purchase a 3A, 4A, 5A, 8A, 10A, or 20A DC-DC boost converter. The prices shown on this page already reflect the discount.

Features

• Wide input voltage range: 10V to 23V.
• Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
• This step up module comes with waterproof lever of IP67, moisture-proof & anti-shock protection.
• Auto-recovery when device is back to normal operating.
• Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
• Industry grade 12V DC to 24V DC boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

15A DC-DC Boost Converter Specification

12V to 24V DC-DC Boost Converter Model Selection

Code	Model	Price	Input Voltage	Output Voltage	Output Current	Output Power	Efficiency	Size	Download
1	CCHNWG-12S2401	$53.26	12V DC	24V DC	1 Amps	24 Watts	95%	57*64*22mm
2	CCHNWG-12S2402	$66.48	12V DC	24V DC	2 Amps	48 Watts	94%	57*64*22mm
3	CCHNWG-12S2403	$50.06 ($71.52)	12V DC	24V DC	3 Amps	72 Watts	95%	74*74*32mm
4	CCHNWG-12S2404	$56.45 ($80.64)	12V DC	24V DC	4 Amps	96 Watts	94%	74*74*32mm
5	CCHNWG-12S2405	$66.75 ($95.36)	12V DC	24V DC	5 Amps	120 Watts	94%	74*74*32mm
6	CCHNWG-12S2408	$78.72 ($112.45)	12V DC	24V DC	8 Amps	192 Watts	93%	74*74*32mm
7	CCHNWG-12S2410	$86.93 ($124.19)	12V DC	24V DC	10 Amps	240 Watts	92%	74*74*32mm
8	CCHNWG-12S2412	$138.67	12V DC	24V DC	12 Amps	288 Watts	95%	74*74*32mm
9	CCHNWG-12S2415	$150.95	12V DC	24V DC	15 Amps	360 Watts	94%	100*80*39mm
10	CCHNWG-12S2420	$144.49 ($206.41)	12V DC	24V DC	20 Amps	480 Watts	95%	100*80*32mm
11	CCHNWG-12S2425	$246.28	12V DC	24V DC	25 Amps	600 Watts	96%	150*127*63mm
12	CCHNWG-12S2430	$278.13	12V DC	24V DC	30 Amps	720 Watts	95%	150*127*63mm
13	CCHNWG-12S2440	$305.18	12V DC	24V DC	40 Amps	960 Watts	94%	220*127*63mm
14	CCHNWG-12S2450	$344.36	12V DC	24V DC	50 Amps	1200 Watts	93%	300*127*63mm

Note: The series of 12V to 24V DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order. Models marked in red are available at a 30% discount.

Details

Tips: DC-DC boost converter basic working principle

The basic working principle of a DC-DC boost converter is to step up a lower DC voltage to a higher DC voltage through switching mode power supply technology. Its core components include an inductor, a switch (usually a MOSFET), a diode and an output capacitor. The following is the basic working process of Boost Converter:

1. Energy storage stage: When the switch (such as MOSFET) is closed, current passes through the inductor, and the inductor begins to store energy.
2. Energy release stage: When the switch is turned off, the stored energy in the inductor is released to the output terminal through the diode, increasing the output voltage.

By rapidly switching on and off, the inductor cycles between storing and releasing energy, causing the output voltage to be higher than the input voltage.
