32 Amps 3 Pole AC contactor 24V/110V/220V Coil

32 Amps AC Contactor Features

This is a brand new upgrade bypass contactor for long-distance connecting and breaking circuit. Rated current with 32 Amps, 3P+NO or 3P+NC, there are 24 volt coil, 110 volt coil, 220 volt coil for you to choose.

32 Amps AC Contactor Specifications

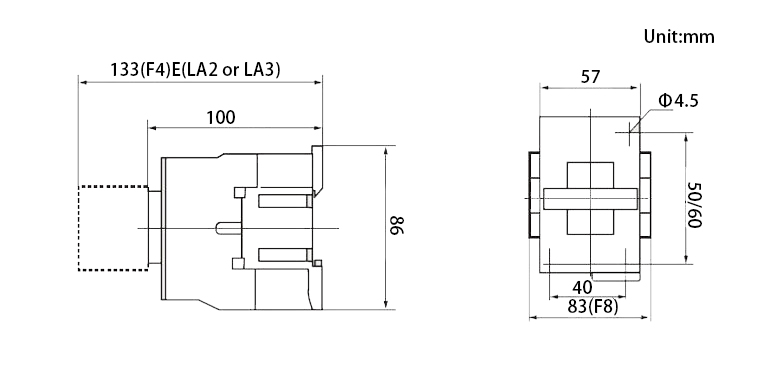

32 Amps AC Contactor Dimensions

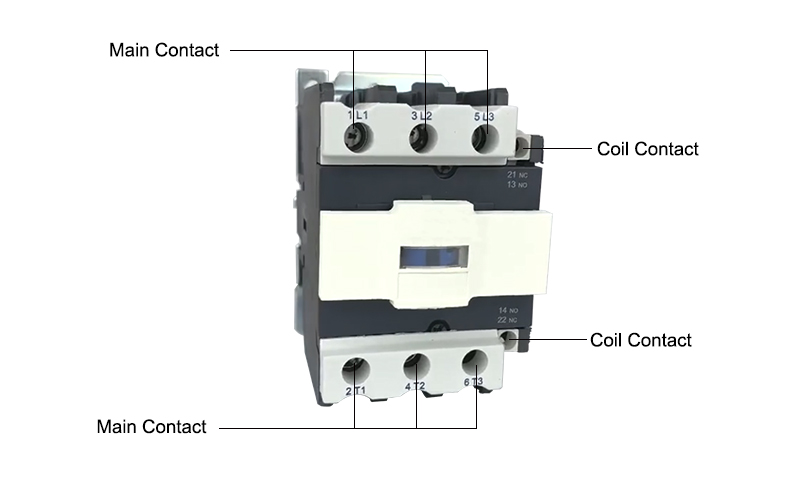

Details

Tips: The main components of the AC contactor

• Electromagnetic system, including attracting coil, moving iron core and static iron core.
• The contact system comprises three main contacts and two normally open and two normally closed auxiliary contacts, which are connected with the moving iron cores.

• Arc extinguishing device, the AC contactor with large capacity is generally equipped with arc extinguishing device to cut off the arc quickly and avoid burning the main contact.

• Insulating housing and accessories, various springs, transmission mechanisms, short-circuit rings, binding posts, etc.

• The contact of the AC contactor is made of silver-tungsten alloy and has good electrical conductivity and high temperature ablation resistance.
