9 Amps 3 Pole AC contactor 24V/110V/220V Coil

9 amps 3 pole AC contactor, available with 24V, 110V, 220V coil voltage. It mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. The rated current is 9A when used at 380V and 7A at 660V, for long distance breaking circuit and frequently starting or control the motor. This bypass contactor frequently start and control AC electromotor.

SKU: CCHN-ACCON-009

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

9 Amps AC Contactor Features

Low cost AC magnetic contactor with 3 pole, 9A current, 24V, 110V, 220V AC coil voltage for your selection. It has small size, light weight, low power consumption, long life, safe and reliable features, can be as a bypass contactor for frequently starting and controlling AC motors.

9 Amps AC Contactor Specifications

Model		CCHN-CJX2-09
Rated Operational Current (AC-3)	380V	9A
	660V	7A
Conventional Heating Current		20A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	2.2kW
	380V	4kW
	660V	5.5kW
Operational Frequency (AC-3)	Electric Life	1200 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	100
	Mechanical Life (10⁴ times)	1000
Matching Fusing Model		RT16-16
Average Power Consumption (20℃) @ 50Hz	Pick-up	76VA
	Holding	9.4VA
Contact Form (Optional)		3P+NO or 3P+NC
Rail Size		35mm
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Class of Pollution		Class 3
Installation Category		Ⅲ
Weight		0.33kg

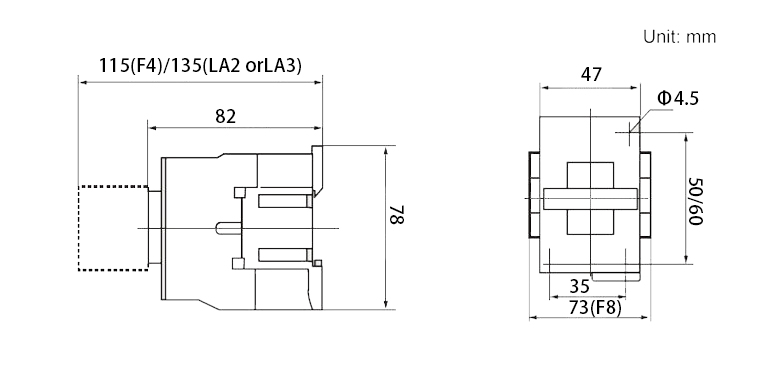

9 Amps AC Contactor Dimensions

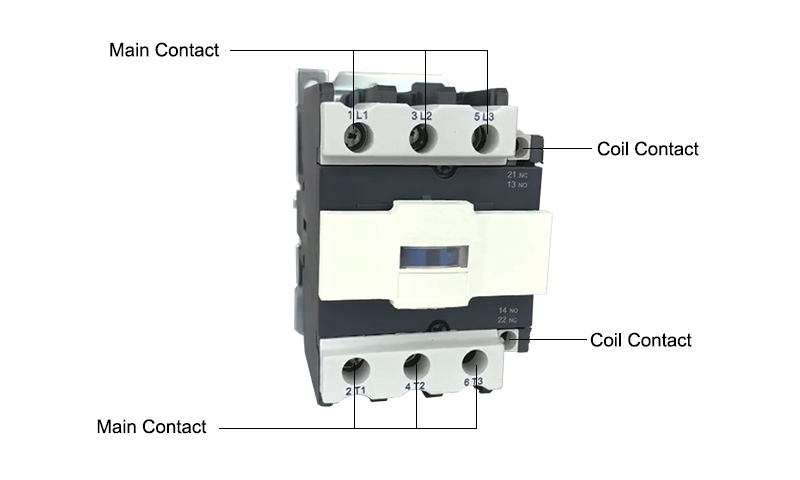

Details

Tips: Contactor installation precautions

When the contactor is installed, the bottom plate should be perpendicular to the bottom surface, and the inclination should be less than 5°.
When the AC contactor is installed, the two sides should be placed in the upper and lower positions to facilitate heat dissipation.
When installing the wiring, be careful not to lose the screws, coils, terminals, etc, and tighten the screws.
