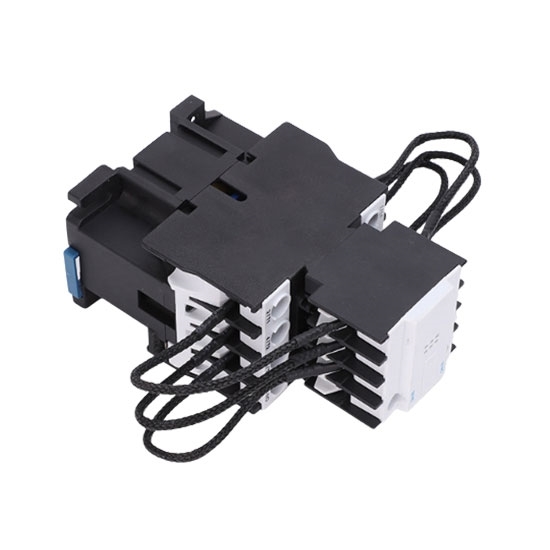

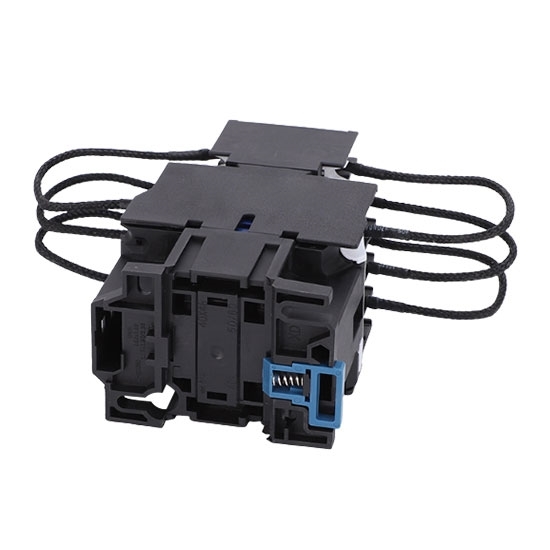

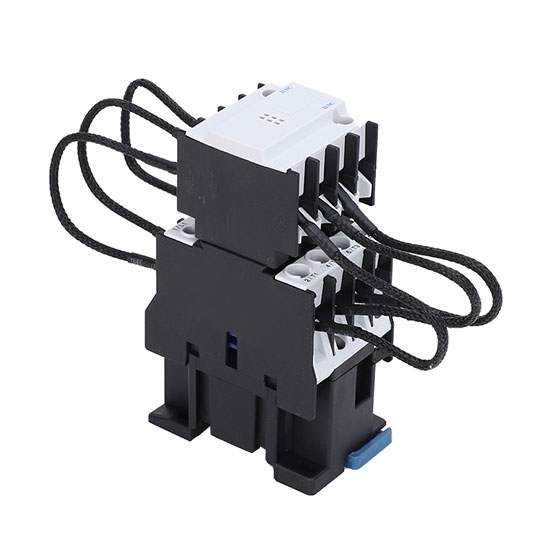

25A AC Capacitor Contactor, 3 Pole, 220V/380V

25A AC Capacitor Contactor, 3 Pole, 220V/380V

25A AC capacitor contactor designed for reliable capacitor bank switching and protection in reactive power compensation systems. Features a 3-pole structure, 1NO+1NC auxiliary contacts, an AC coil rated for 220V/380V at 50Hz, and DIN rail mounting for easy installation in electrical cabinets.

SKU: CCHN-CC-25A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN capacitor contactor for sale, this 25A AC capacitor contactor with selectable 220V or 380V coil rated voltage is designed for capacitor bank switching in reactive power compensation systems. Featuring a durable heat-resistant design and convenient 35mm DIN rail mounting, it provides stable performance and easy installation for electrical control applications.

Specification

Model	CCHN-CJ19-2511
Rated Current	25A
Rated Coil Voltage	AC 220V/380V
Maximum Controlled Capacitor Capacity	12 kVAr
Number of Poles	3P
Auxiliary Contact Configuration	1NO+1NC
Rated Frequency	50Hz
Operating Current	22.5A
Conventional Thermal Current	26A
Electrical Life	100000 operations
Mechanical Life	1000000 operations
Mounting Method	DIN Rail Mount
Wiring Method	Screw Terminal
Protection Type	Capacitor Protection
Ambient Temperature	-5–40℃
Protection Degree	IP20
Dimensions	80 × 47 × 124mm
Weight	0.44kg

Feature

Reliable Capacitor Switching: 25A AC capacitor contactor is designed for capacitor bank switching and protection in reactive power compensation systems, featuring 3 poles and 1NO+1NC auxiliary contacts.
Heat-Resistant Copper Coil: High-quality copper coil improves heat resistance, reduces overheating, and ensures smooth contact operation with long service life.
Stable Magnetic System: The AC capacitor contactor uses 32 silicon steel sheets and an enlarged iron core structure to improve heat dissipation, minimize energy loss, and provide stable operation with smooth contact engagement.
Safe & Easy Wiring: Enlarged terminals and PA66 insulating base provide secure connections and reliable performance for heavy-load applications.
35mm DIN Rail Mounting: The 25A capacitor switching contactor features a standard 35mm DIN rail mounting design with a dual-hole wiring structure, allowing quick installation, secure connection, and convenient maintenance in electrical cabinets.

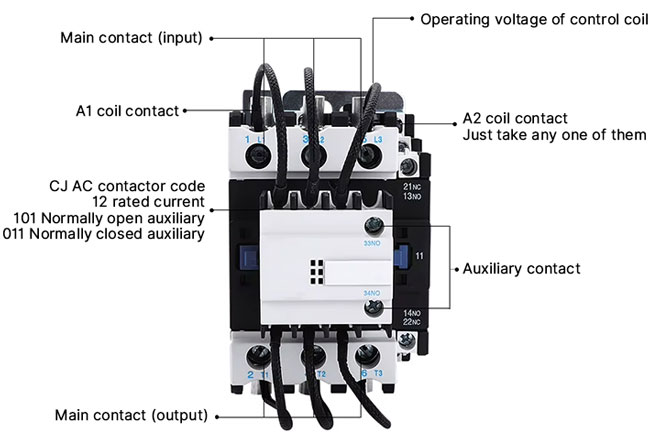

Detail

25A AC capacitor contactor details

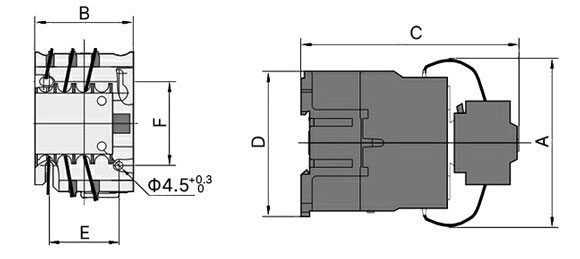

Size (unit: mm)

25A AC capacitor contactor size

Amax	Bmax	Cmax	Dmax	E	F
80	47	124	76	34/35	50/60

Wiring

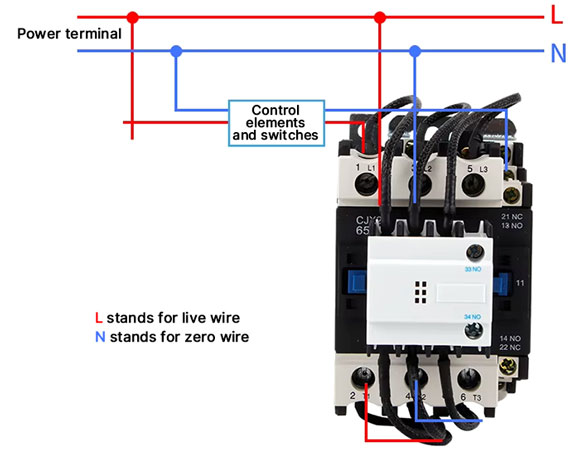

220V

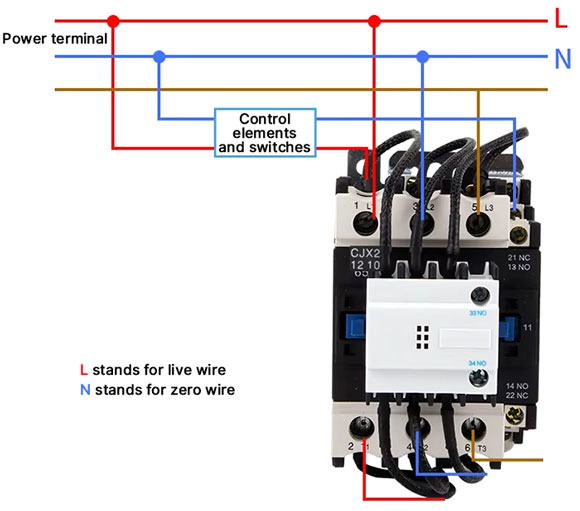

380V

25A AC capacitor contactor 380v

Application

25A AC capacitor contactor application

Tips: Why use a capacitor contactor instead of a standard AC contactor for capacitor banks?

A capacitor contactor is specifically designed for switching capacitor banks used in power factor correction and reactive power compensation systems. Unlike a standard AC contactor, it includes a current-limiting mechanism that helps suppress the high inrush current generated when a capacitor is energized. This reduces contact arcing, minimizes electrical stress, and prevents premature contact damage during frequent switching operations. By providing smoother capacitor switching and more reliable performance, a capacitor contactor helps extend the service life of both the contactor and connected capacitor equipment, making it a better choice for automatic power compensation cabinets, industrial power systems, and electrical distribution applications.
