2 Pole Definite Purpose Contactor, 20 amp ~ 40 amp

Low price 2 pole definite purpose contactor is the air conditioner contactor. 20 amp ~ 40 amp HVAC contactor works at 50/60 Hz frequency and provides 24V, 110V/120V, 208V/240V, 277V coil voltage. DP contactor with compact load control, suitable for motors and compressors in resistance heating, air conditioning and refrigeration, and food service equipment.

SKU: CCHN-DPC-2P

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

20 amp ~ 40 amp definite purpose contactor for sale. 2 pole air conditioner contactor is available with 24V, 110V/120V, 208V/240V, 277V coil voltage and 50/60 Hz frequency. AC contactor is designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Features

DP contactor has a wide current range (from 20 A to 40 A)
Standard AC operating coil ranges for control circuit applications: 24V, 120V, 208-240V, and 277V.
1 pole, 2 pole, 3 pole and 4 pole definite purpose contactors are available.
Various contact configurations from 1 pole to 4 pole.
UL certification, CSA certification.

Specifications

Model	CCHN-XKJL1-2P
Pole	2
Coil Voltage	24V, 110V/120V, 208V/240V, 277V AC
Hertz	50/60 Hz
Temperature Range:	- 40°F to + 150° F / - 40°C to + 65° C
Mechanical Life	1, 000, 000 times
Electrical Life	250, 000 times
Certificate	UL/CCC

Technical Parameter

Model	FLA (A)	LRA (A)	LRA (A)	LRA (A)	LRA (A)	Phase	Resistive Amps Rating
Model	FLA (A)	480V AC	600V AC	277V AC	240V AC	Phase	Resistive Amps Rating
CCHN-XKJL1-2P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120

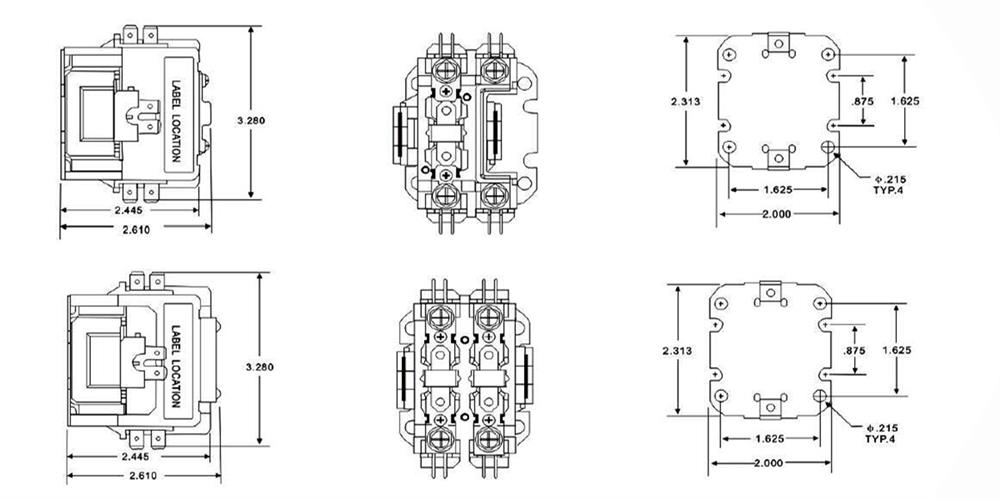

2 Pole Definite Purpose Contactor Dimension (Unit: inch)

Tips: The Usage Of Definite Purpose Contactors

Definite purpose contactor provides high performance, flexibility and reliability. It is designed to match many applications. DP contactor is ideal for motors and compressors in resistance heating, air conditioning and refrigeration, as well as food service equipment.
