3 Phase AC Vacuum Contactor, 200A, 1140V

3 Phase AC Vacuum Contactor, 200A, 1140V

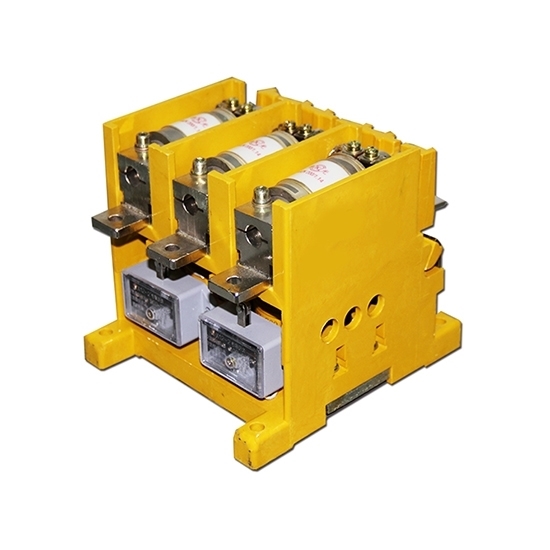

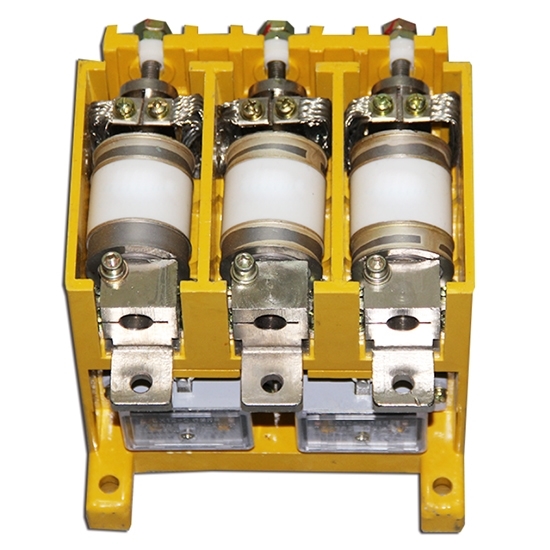

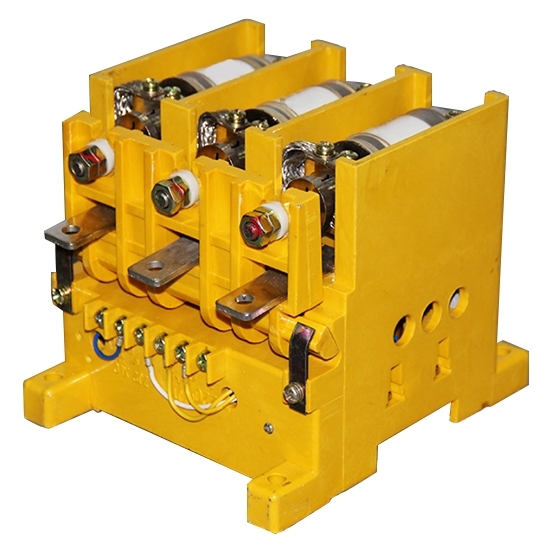

Rated 1140V, 200A ac vacuum contactor is used for frequently switch on and off the normal working current. 3 phase, 36 volt or 220 volt control circuit, 2±0.2 mm open distance, 80±20 N final power, 1500000 times electrical life.

SKU: CCHN-VCON-200

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy best 4 pole contactor with vacuum tube at the lowest price on CCHN. AC 50Hz or 60Hz, 4200 volt main circuit, 2500 volt auxiliary circuit, 2000 volt control circuit.

Specification

Model		CCHN-CJZ-200
Rated voltage	Main circuit	1140V
	Control circuit (AC)	36V, 220V
Rated current		200A
Main contact parameter	Open distance	2±0.2 mm
	Over distance	＞1 mm
	Final power	80±20 N
Power frequency withstand voltage	Main circuit	4200V
	Auxiliary circuit	2500V
	Control circuit	2000V
Phase		3
Number of Pole		4
Frequency		AC 50Hz or 60Hz
Making capacity		10 le 100 times
Breaking capacity		8 le 25 times
Max making & breaking capacity (A)		2000 3 times
Electric life	AC3	600000 times
	AC4	60000 times
Electrical life		1500000 times
Function		Device protection
Electricity type		Vacuum
Ambient temperature		-25℃ to 40℃
Packaging details		Standard package or according to customer's requirements
Weight		6.5kg

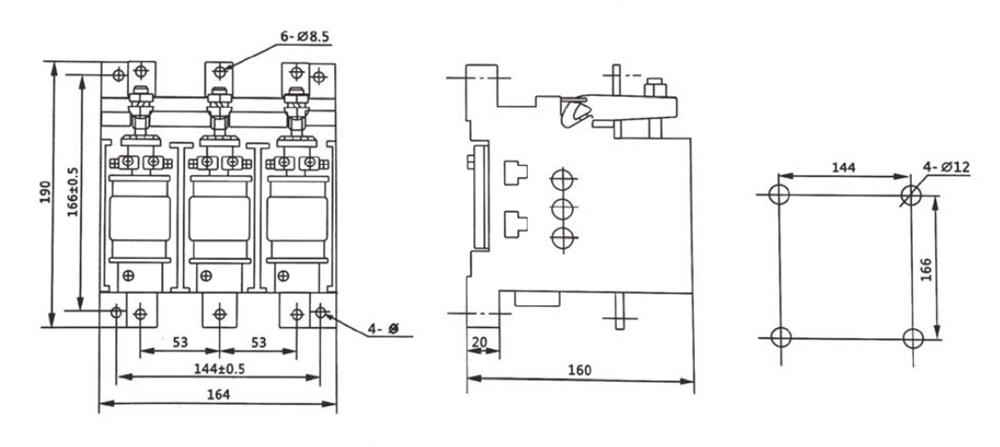

AC vacuum contactor outline and installation dimension (Unit: mm)

Tips: Vacuum ac contactor troubleshooting

Whether the vacuum ac contactor is faulty or not can be judged according to whether it can be closed and opened accurately and reliably and kept in the closing and opening positions. The failure of the main circuit can be found and eliminated from the routine inspection and maintenance of the vacuum ac contactor. The common failure analysis of vacuum ac contactor is as follows:

Inability to store energy: Inability to store energy is one of the common failures of vacuum contactors, especially the energy storage mechanism driven by ratchets and pawls has a higher probability of failure. The energy storage mechanism to complete the energy storage action mainly depends on the three links of the energy storage motor, the drive mechanism, and the positioning parts. Grasping these three links firmly, it is easy to find out the cause of the ac vacuum contactor failure.
No closing action: The fault here is mainly related to whether the closing electromagnet is closed, whether the energy storage is in place, and whether the positioning member is operating normally.
The ac vacuum contactor has a closing action but fails to close. When analyzing this type of failure, you should first analyze the lock, and then analyze whether it is related to the energy storage part.
The ac vacuum contactor does not open: It should be emphasized here that when the vacuum ac contactor refuses to move or closes, before analyzing and repairing the main body of the contactor, it is necessary to fully judge whether the reason is in the control and secondary components such as auxiliary switches, terminal blocks, etc., and then analyze and diagnose the contactor.
