Multimode Fiber Converter

Lower cost multimode fiber converter for sales online. The multimode converter supports point-to-point or loop(point-to-multipoint) connection, multi-mode working distance 2km, supports RS232 asynchronous communication protocol, which with baud rate 300-115.2 kbps.

SKU: CCHN-UT-2077

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap price multimode fiber converter with working temperature -25℃-70℃, relative humidity 5% to 95%, 820 nm working wavelength, ST fiber interface.

Specification

Model	CCHN-UT-2077
Asynchronous transmission	Point to point, 115.2 kbps
Transmission distance	2000m (multimode mode)
Operating temperature	-25℃-70℃, relative humidity 5% to 95%
Working wavelength	820 nm (muti-mode)
Interface	RS-232: DB9 female; fiber port: optional SC interface (with optional other interfaces)
RS-232	Standard RS-232 3 wire, ±15kV ESD protection, baudrate can be up to 115.2 kbps, no need ecternal power, powered by the RS232 port.
Certificate	CE
Warranty	12 months

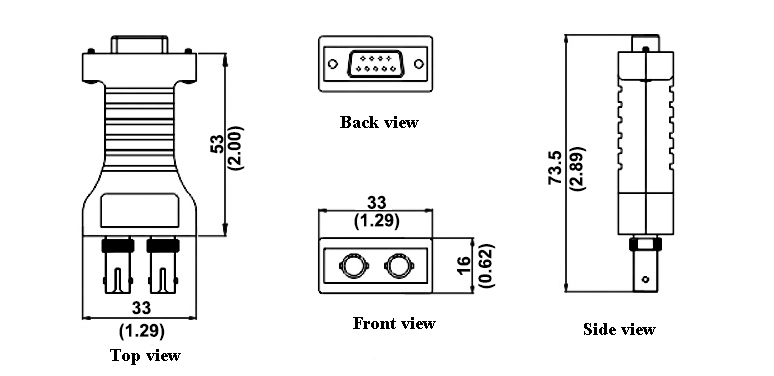

Dimension (inch/ mm)

Dimension of multimode fiber converter

Details

Tips: Features of Fiber Converter.

1. RS485 adopts advanced automatic flow control technology, which can automatically identify signal flow direction.
2. The serial port end is adaptive to RS232, RS422 and RS485 interfaces, no external working mode selection switch, simpler and more convenient to use.
3. Two forms of power interface are provided at the same time, terminal method and socket method, whichever can be connected in actual use.
4. Provide power and signal direction (← and →) three indicator lights to facilitate users to check the communication status.
5. The shell is made of metal and iron, which is sturdy and durable. It can be installed on a panel or on an industrial rail.
