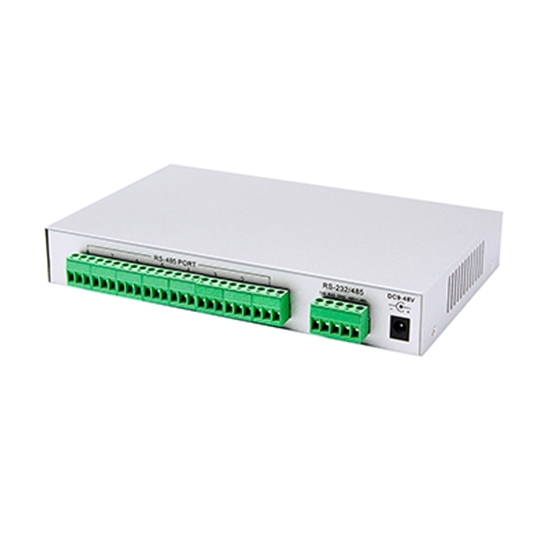

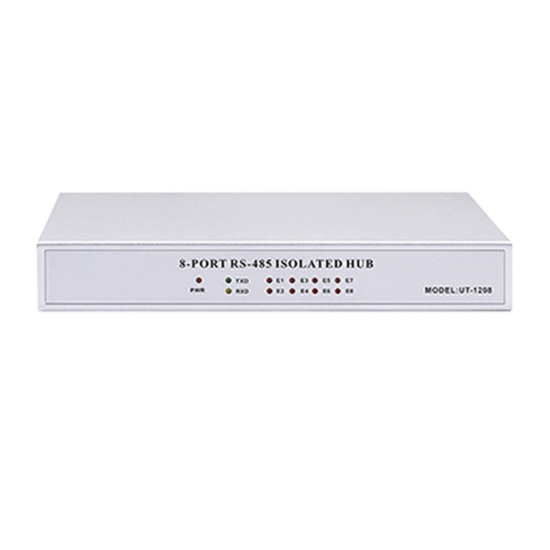

RS-232/ RS-485 to RS-485 Hub, 8 Ports

Cost-effective RS-232/ RS-485 to RS-485 hub with 8 ports, 300-115.2Kbps baud rate, asynchronous half-duplex operating mode, terminal block connector, 5000m (9600bps) transmission distance. It is widely used in highway toll system, traffic monitoring system and power system.

SKU: CCHN-UT-1208

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap Cost-effective RS-232/ RS-485 to RS-485 hub with 8 ports, -40℃ to 85℃ operating temperature, RS-232C & RS-485 input interface.

Specification

Model	CCHN-UT-1208
Standards	RS-232/485 EIA/ TIA
Input interface	RS-232C & RS-485
Output interface	8 ports RS-485
Baud rate	300-115.2Kbps
Transmission distance	5000m (9600bps)
Operating mode	Asynchronous half-duplex
Connector	Terminal block
Dimension	210mm130mm32mm
Operating temperature	-40℃ to 85℃
Relative humidity	5% to 95%
Certificates	RoHS, CE, FC
Warranty	12 months

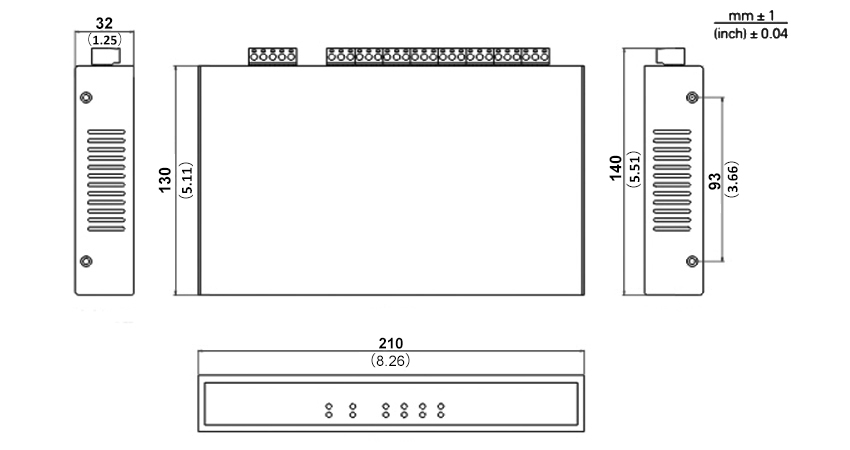

Dimension (mm/ inch)

RS232 to RS485 hub of 8 ports

Tips: The Classification of Hub
HUB can be divided into passive HUB, active HUB, smart HUB and other HUB according to the way of processing the input signal.
Passive HUB:
It is the worst type, does not do any processing to the signal, does not extend the transmission distance of the medium, and has a certain impact on the signal. Each computer connected to this HUB can receive signals from all other computers on the same HUB.
Active HUB:
The difference between an active HUB and a passive HUB is that it can amplify or regenerate the signal, so that it extends the effective transmission distance between the two hosts.
Smart HUB:
In addition to all the functions of an active HUB, the intelligent HUB also has network management and routing functions. In the smart HUB network, not every machine can receive the signal, only the computer with the same address as the signal destination address can receive it. Some smart HUBs can choose the best path by themselves, which has a good management of the network!
