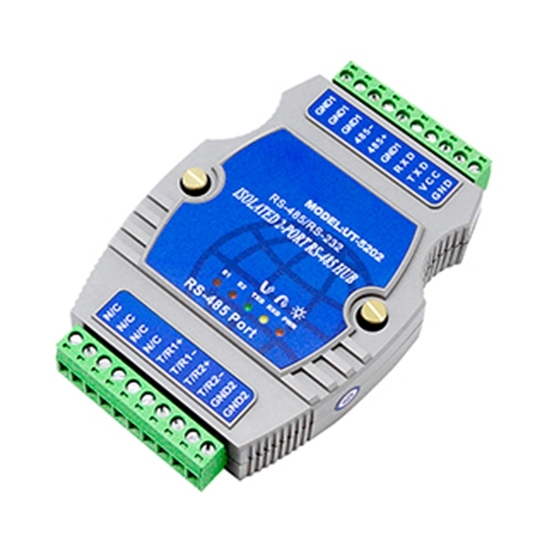

RS-232/ RS-485 to RS-485 Hub, 2 Ports

RS-232/ RS-485 to RS-485 hub at affordable price, which with two ports, twisted-pair/ shielded wire transmission media, 9-30VDC/ 150mA operating power, asynchronous half-duplex working mode. It is widely used in highway toll systems, road monitoring systems and power acquisition systems.

SKU: CCHN-UT-5202

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Good price RS-232/ RS-485 to RS-485 hub with 2-ports, RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection, 300bps-115.2kbps baud rate.

Specification

Model	CCHN-UT-5202
Standards	RS-232C, RS-485 EIA/ TIA
Interface	RS-232C: 10-pin terminal block; RS-485: 10-pin terminal block
Transmission media	Twisted-pair or shielded wire
Working mode	Asynchronous half-duplex
Operating power	9-30VDC/ 150mA
Isolation	2500VRMS/ 500DC continuous isolated vlotage, DC/ DC module
Baud rate	300bps-115.2kbps
Protection	RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection
Transmission distance	0-5000m (115200-300bps)
Dimension	120mm80mm25mm
Operating temperature	-40℃ to 85℃
Relative humidity	5% to 95%
Certificates	RoHS, CE, FC
Warranty	12 months

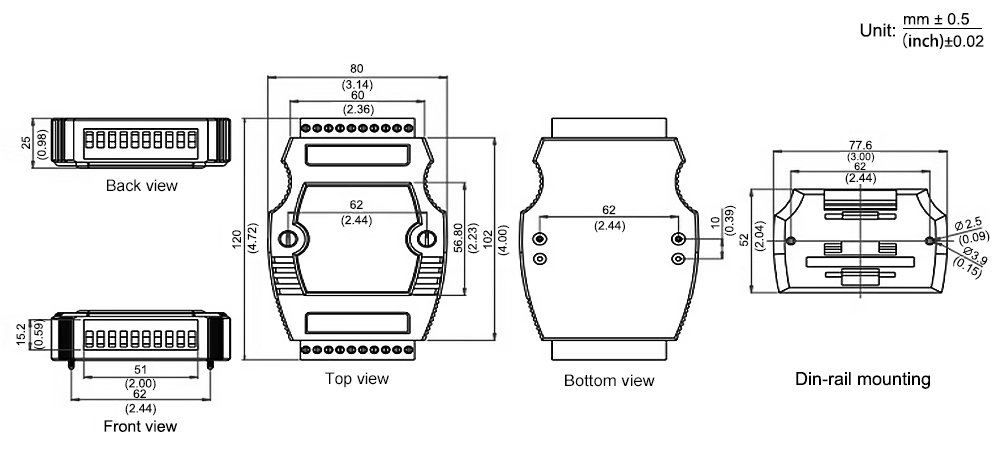

Dimension (mm/ inch)

dimension-of-RS232-to-RS485-hub-of-4-ports

Tips: What is a Hub?

A hub is a device that connects multiple Ethernet twisted pairs or optical fibers together under the same physical medium. The hub is the physical layer operating in the OSI model. It can be regarded as a multi-port repeater, if it detects a collision, it will submit a blocking signal.
Since the hub will regenerate or amplify any digital signal received, and then submit it from all ports of the hub, this will cause a great chance of collision between signals, and the signal may also be eavesdropped, and this means that all connected to the hub All of the devices belong to the same collision domain name and broadcast domain name, so most hubs have been replaced by switches.
