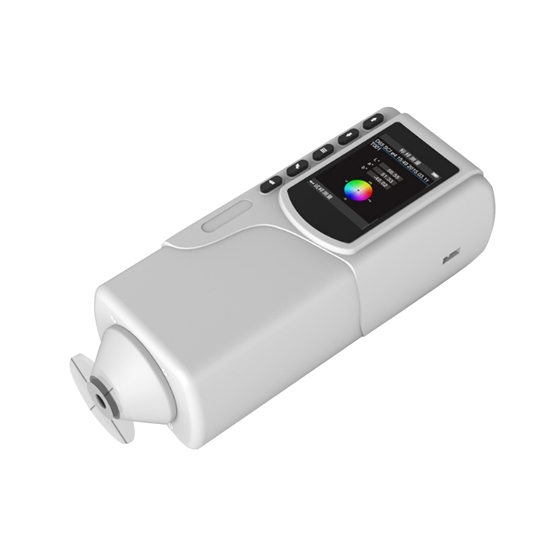

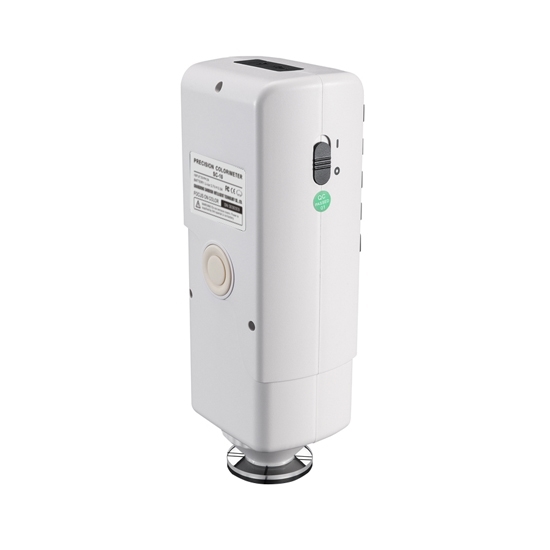

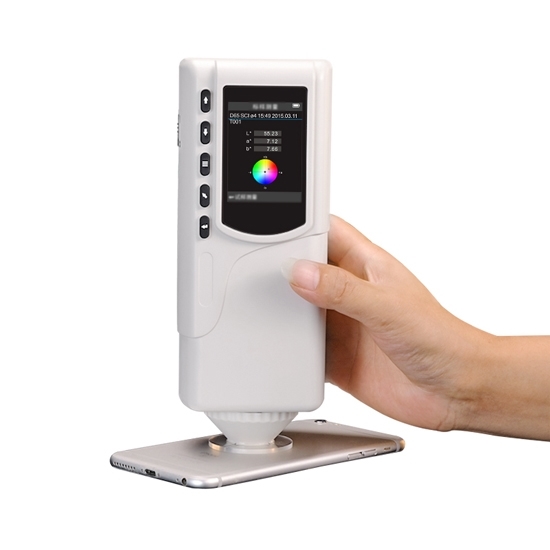

Handheld Color Meter, Caliber 4mm

Handheld color meter for the paint, plating and coatings industries, caliber 4mm, clear digital LCD display, comfortable price and high quality. The best colorimeter can accurately and quickly measure the reflected color and chromatic aberration.

SKU: CCHN-CM-SC-10

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap handheld color meter can measure ink absorption, USB connection, high quality, small size and easy to carry. Widely used in paper, printing, building materials, food, salt and other industries.

Note:

The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.
This colorimeter cannot transmit data or perform any other functions with computer software. The USB port is only for charging purposes.

Specification:

Model	CCHN-CM-SC-10
Illuminating/Viewing Geometry	8/d
Measuring Aperture	φ4mm
Errors Between Each Equipment	≤0.20E*ab
Repeatability	≤0.03 E*ab Measure white standard version 30 times average
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating

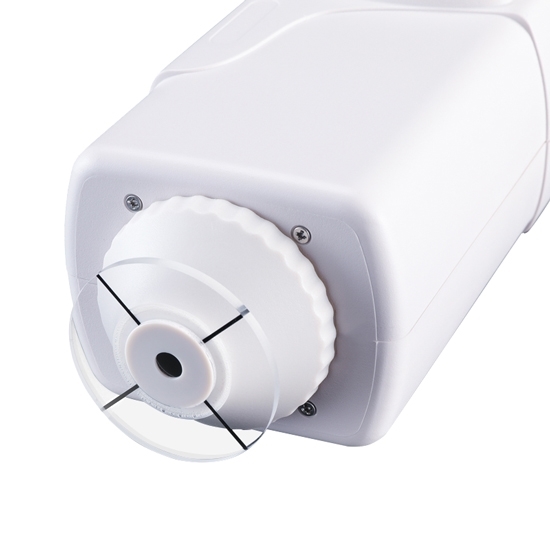

Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELab
Color Difference Formula	E*ab,
Light Source	D65
Light Source Device	LED blue light excitation
Weight	500g
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	8 hours--100% electricity
Connector	USB
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Dimension	20570100mm

Packing List

No.	Name	Quantity
1	Colorimeter	1
2	Power adapter	1
3	Manual	1
4	Wristband	1
5	Φ4 Platform measuring diameter	1

Details

Applications

Tips: What does the LAB in the colorimeter mean?
L, A, B on the colorimeter is the chromaticity value representing the color of the object, that is, the color space coordinate of the color. Any color has a unique coordinate value, where L represents the brightness (black and white) and A represents red and green. B stands for yellow-blue. Using the colorimeter, generally output three sets of data of L, a, b and color difference data of △E, △L, △a, △b after colorimetric, △E total color difference, △L+ means bright, △ L- indicates darkness, Δa+ indicates reddishness, Δa- indicates greenishness Δb+ indicates yellowishness, and Δb- indicates bluishness.
