8" Flanged Ball Check Valve

Note: This ball check valve cannot be used for drinking water.

8 inch ball check valve is a non-return valve with a large flow rate and low resistance. Ductile iron ball type check valve, DN200, flanged connection, suitable for water supply and drainage pipeline systems in power, water conservancy, metallurgy, chemical industry, urban construction and other industries.

Specifications

• Model: CCHN-HQ41X-16Q
• Nominal Diameter: 8 inch/200mm
• Nominal Pressure: 1.0~1.6 Mpa
• Structure Length: 375mm
• Body Material: Ductile Iron
• Connection Form: Flange
• Temperature: 0~80℃
• Applicable Medium: Water and Weakly Corrosive Fluids

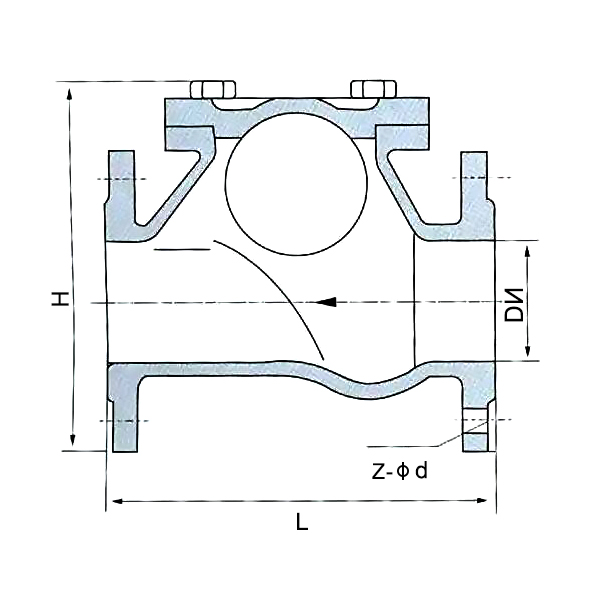

Dimension (Unit: mm)

DN: 200mm L: 500mm H: 495mm

Installation Diagram

Applications

Ball check valves are commonly used in applications where low flow resistance and reliable backflow prevention are necessary, such as in water treatment plants, pumping systems, and process piping systems. They are often used in situations where the fluid needs to flow in only one direction, such as in fuel lines, chemical processing systems, and air compressors.

Tips: What is the difference between a ball check valve and a swing check valve?

A ball check valve uses a spherical ball to block reverse flow, while a swing check valve uses a hinged disc or gate. Ball check valves typically offer quicker closing times and are less likely to get stuck open compared to swing check valves.
