3hp (2kW) Stainless Steel Centrifugal Pump

Economical price ss centrifugal pump with rated power 3hp, rated voltage 1-phase 220V/ 3-phase 380V. The stainless centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

SKU: CCHN-BAW-150-1

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Stainless steel sanitary pump with 10t/ h flow rate, 24m lift (water column), 51/ 38mm inlet/ outlet size, three kinds of accessories for selection.

Specification

Model	CCHN-BAW-150-1
Rated power	3hp (2kW)
Rated voltage	220V/ 380V, please contact us for 1 phase 240V 60Hz and other voltage types.
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	10t/ h
Lift (water column)	24m
Inlet/ outlet size	51/ 38mm
Outer size	L520mmW260H370m
Weight	38kg
Warranty	12 months

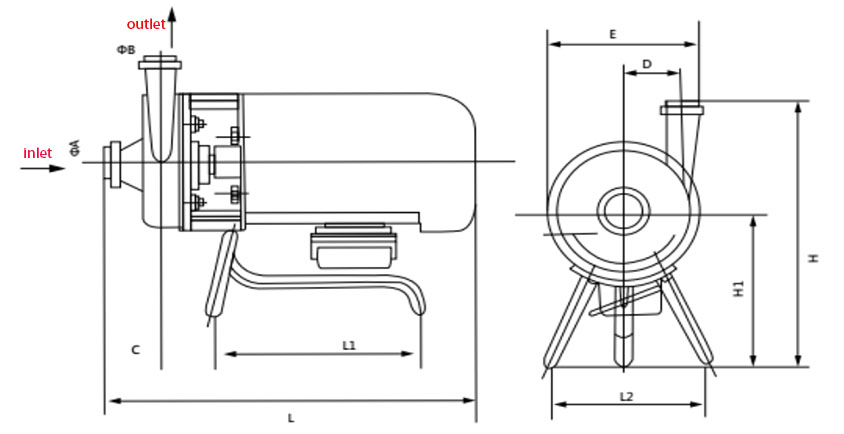

Dimension

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-150	51	38	85	60	220	530	350	190	380	220

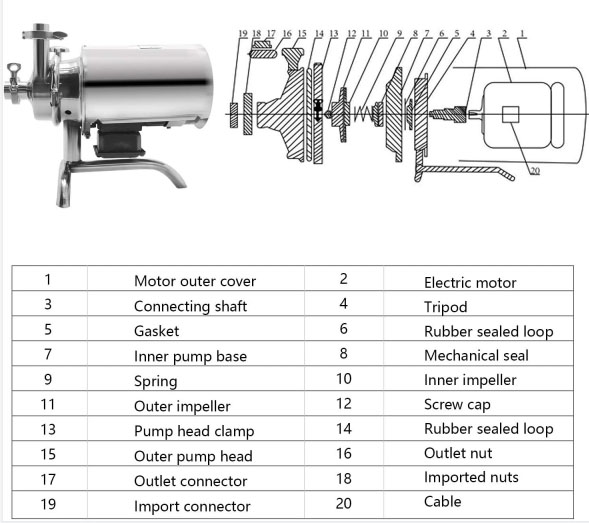

Product information

Tips: Adjustment Method of Stainless Steel Centrifugal Pump.
Outlet valve adjustment, pump variable speed adjustment and pump series and parallel adjustment. The centrifugal pump uses variable speed to adjust the flow rate, which can save energy better than the outlet valve to adjust the flow rate, and the energy saving efficiency is related to the flow rate change. In actual application, attention should be paid to the range of variable speed adjustment, in order to better apply the variable speed adjustment of centrifugal pump.
