2hp (1.5kW) Stainless Steel Centrifugal Pump

2hp ss centrifugal pump with rated voltage 1-phase 220V/ 3-phase 380V, 5t/ h flow rate. The stainless steel centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

SKU: CCHN-BAW-150

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Stainless steel sanitary pump with 1.5kW, which features 18m lift (water column), clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ union three kinds of accessories for selection.

Specification

Model	CCHN-BAW-150
Rated power	2hp (1.5kW)
Rated voltage	220V/ 380V, please contact us for 1 phase 240V 60Hz and other voltage types.
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	5t/ h
Lift (water column)	24m
Inlet/ outlet size	38mm
Outer size	L500mmW260H370m
Weight	35kg
Warranty	12 months

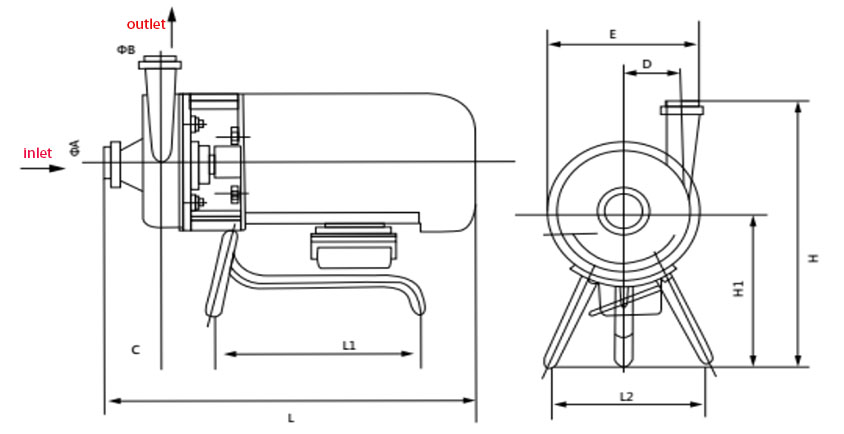

Dimension

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-150	38	38	85	50	200	510	350	180	355	200

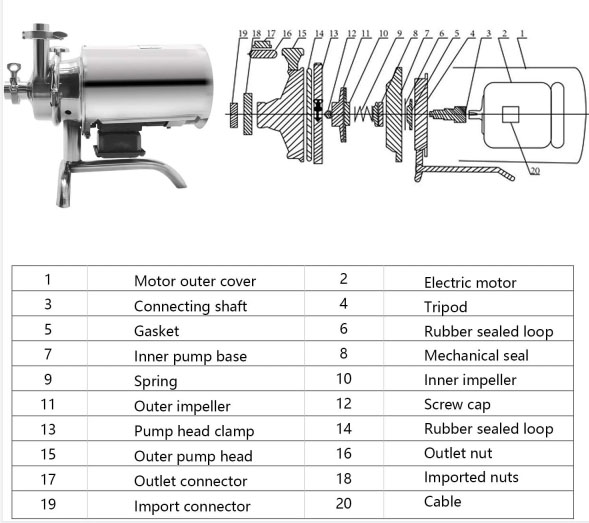

Product information

Tips: How to Install Stainless Steel Centrifugal Pump?
1. The surface of the installed base must be flat, clean and find a place which can able to bear the corresponding load.
2. Use anchor bolts where it needs to be fixed.
3. For pumps installed vertically, the anchor bolts must have sufficient strength.
4. If installed vertically, the motor must be located above the pump.
5. When fixing on the wall, pay attention to aligning and centering.
