1hp (0.75kW) Stainless Steel Centrifugal Pump

Lower cost stainless steel sanitary pump with rated power 750W, rated voltage 1-phase 220V/ 3-phase 380V, clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ union three kinds of accessories for selection. The centrifugal pump has the advantages of wide range of performance, small size, simple structure, easy operation, low operating cost, etc.

SKU: CCHN-BAW-120

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1hp stainless steel centrifugal pump for sales, which with 3t/ h flow rate, 18m lift (water column). The ss centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

Specification

Model	CCHN-BAW-120
Rated power	1hp (0.75kW)
Rated voltage	220V/ 380V, please contact us for 1 phase 240V 60Hz and other voltage types.
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	3t/ h
Lift (water column)	18m
Inlet/ outlet size	38/ 32mm
Outer size	L420mmW220H320m
Weight	22kg
Warranty	12 months

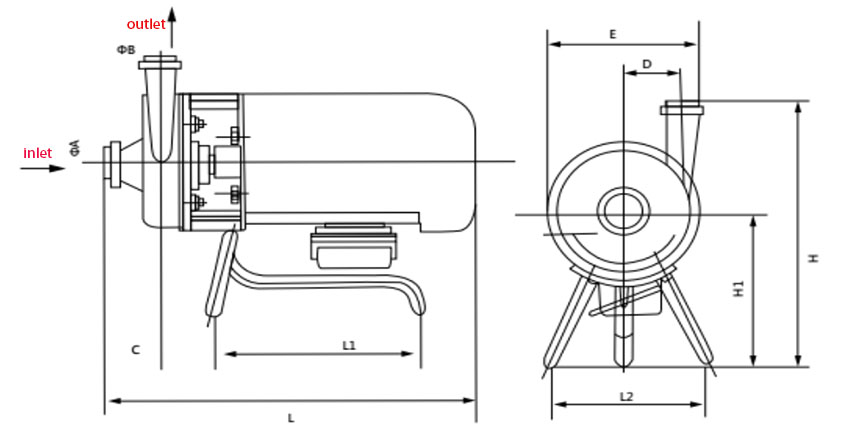

Dimension

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-120	38	32	55	42	190	450	300	170	310	190

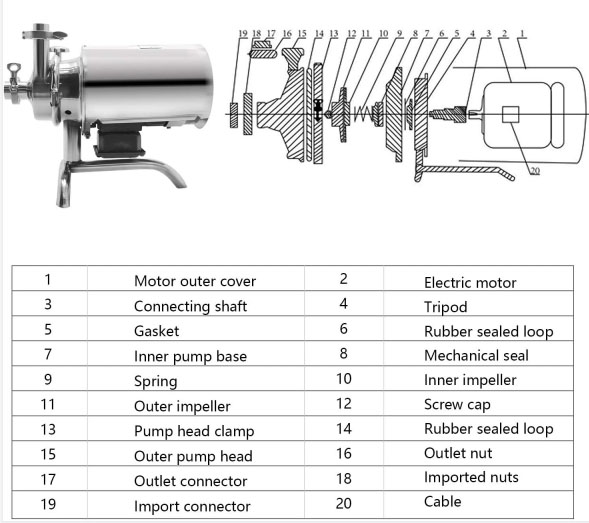

Product information

Tips: Working Conditions of Stainless Steel Centrifugal Pump.

Thin, clean, non-condensing, non-explosive, liquid without solid particles or fibers.
Liquid temperature: Normal temperature type -15°C to +70°C, hot water type +70°C to +110°C.
Maximum ambient temperature: +40℃.
Maximum operating pressure: 10 bar, the maximum inlet pressure is limited by the maximum operating pressure.
Medium acidity and alkalinity: PH4~9.
