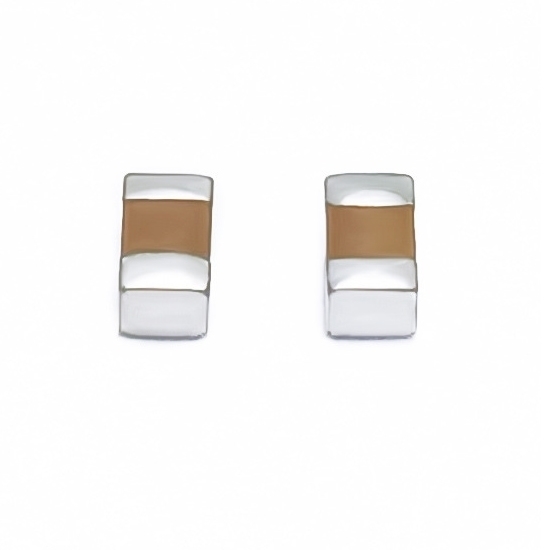

0.1μF 25V Multilayer Ceramic Chip Capacitor

Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

Specification

• Model: CCHN-25V104K0402
• Series: Multilayer Ceramic Chip Capacitor
• Capacitance: 0.1μF (100000pF, 100nF)
• Rated voltage: 25V
• Tolerance: 10%
• Operating Temperature Range: -40℃ - 105℃
• Lead Type: SMD
• Size: 1.0mm
• Thickness: 0.5mm

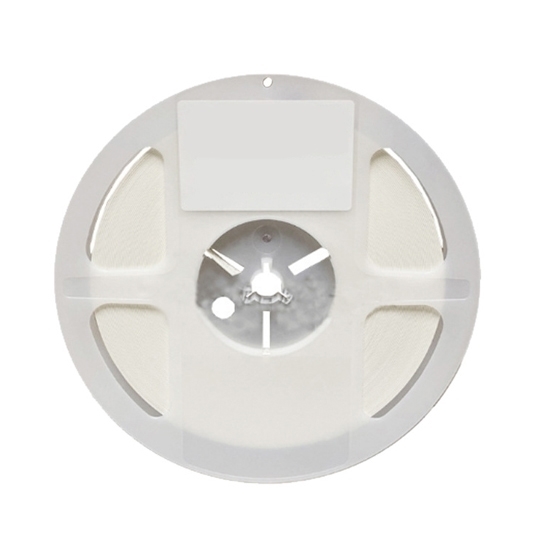

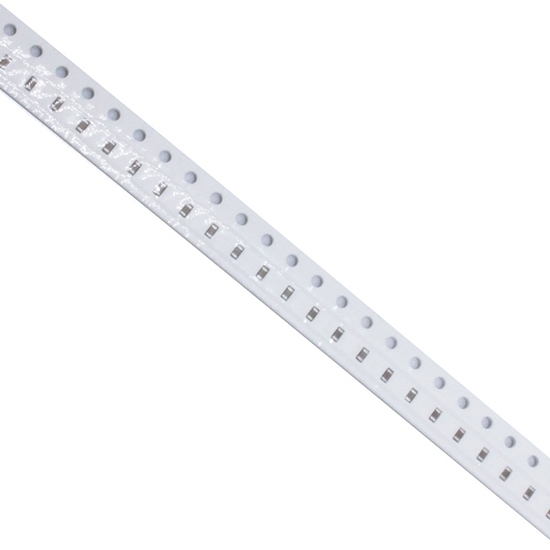

• Package: 4000PCS / roll
• Application: Household Appliances
• Medium Material: Ceramic (Porcelain)
• Loss: 0.01%
• Weight: 0.5kg

Structure

Tips: What are the functions of multilayer ceramic chip capacitors?

• Filtering in the power supply circuit. Filtering is an important part of the role of chip capacitors. It is used in almost all power circuits. Filtering is the process of charging and discharging.
• Provides energy to local devices. It equalizes the output of the regulator and reduces the load demand. Like a small rechargeable battery, the bypass capacitor can be charged and discharged to the device. To minimize impedance, bypass capacitors should be placed as close as possible to the power supply and ground pins of the load device. This is a good way to prevent ground potential rise and noise caused by excessive input values.
