10μF 400V Aluminum Electrolytic Capacitor

High voltage 400V electrolytic capacitor at lower cost. Aluminum electrolytic capacitor with 10μF capacity, cap. tolerance ±20%, direct plug installation type. 10μF electrolytic capacitors can be applied for air conditioners, tape recorders, washing machines, communication machines and other household appliances.

SKU: CCHN-EC-10UF400V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High quality power capacitor with 10μF capacity, 400V rated voltage, dissipation factor 15%, Z-Max.lmpedance 1100mΩ, operating tempertaure -40~105℃. The electrolytic capacitor providing good electrical performance, wide application range and high reliability.

Features

Endurance: 105℃- 2000 hours up to 5000 hours
Low impedance and high ripple current
High reliability
Wide voltage range

Specification

Model		CCHN-EC-KF100M400G
Series		Low impedance 105°C type
Capacity		10 μF
Rated voltage		400V
Installation Type		Direct plug
Size		10*12.5 mm
Operating temperature		-40~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		15%
Low temperature characteristic at 120Hz (Z ratio max.)		5 (Z-25℃/ Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value

Dimension (mm)

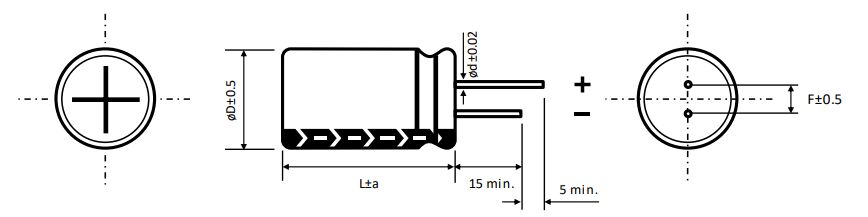

Electrolytic capacitor dimension

Model	Dimension (mm)
CCHN-EC-KF100M400G	∅D	10
	F	5
	∅d	0.6
	a	1.5

Tips: Features of Aluminum Electrolytic Capacitor.

The capacitance per unit volume is very large, tens to hundreds of times larger than other types of capacitors.
The rated capacity can be very large, which can easily reach tens of thousands of μf or even a few f (but cannot be compared with the electric double layer capacitance).
The price has an overwhelming advantage over other types, because the components of electrolytic capacitors are all common industrial materials, such as aluminum and so on. The equipment for manufacturing aluminum electrolytic capacitors are also common industrial equipment, which can be mass-produced and the cost is relatively low.
