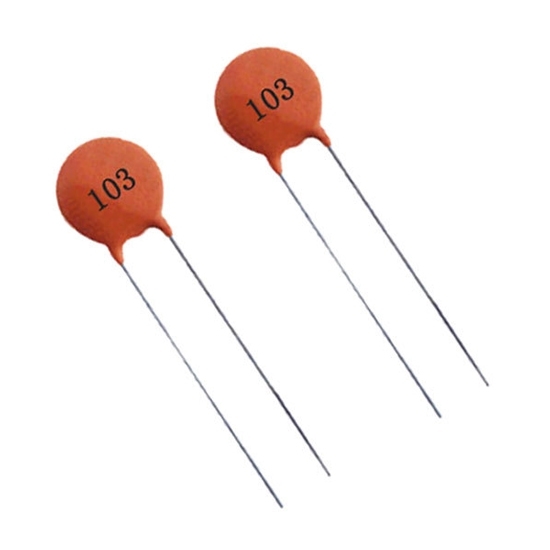

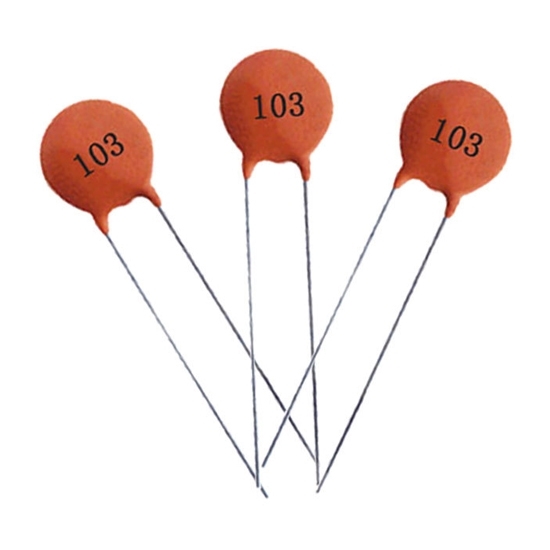

0.01μF 100V Disc Ceramic Capacitor

103 100V disc ceramic capacitor is a low voltage power capacitor with 3mm lead pitch, which can be used for household appliances.

Specification

• Model: CCHN-100V103K
• Series: Low Voltage Disc Ceramic Capacitor
• Capacitance: 0.01μF (10000pF, 10nF)
• Rated voltage: 100V
• Tolerance: 20%
• Dielectric Material: Y5T
• Operating Temperature Range: -40℃ - 105℃
• Feature: Medium Frequency
• Lead Type: Radial Lead Wire
• Lead Pitch: 3mm
• Installation Type: In-line
• Package: DIP
• Application: Household Appliances
• Medium Material: Ceramic (Porcelain)
• Loss: 0.01%
• Weight: 0.02kg

Note:

1. Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
2. Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
3. Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
4. Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: What is a ceramic capacitor?

Ceramic chip capacitor is a kind of capacitor which uses ceramic material as medium, coats a layer of metal film on the ceramic surface, and then sinters it at high temperature as an electrode. It is usually used in highly stable oscillation circuits as a loop, bypass capacitor and pad capacitor.
