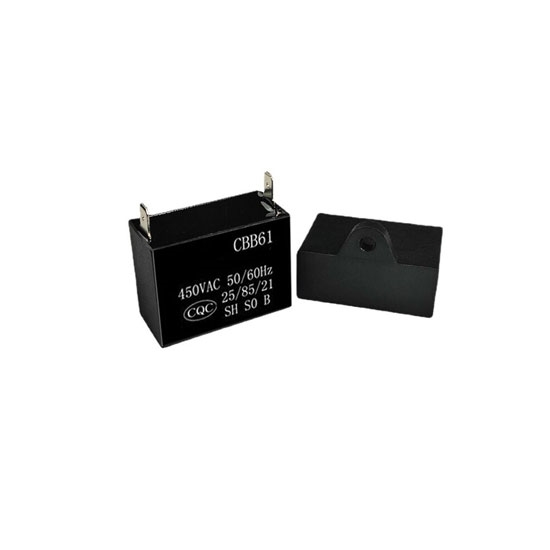

0.5μF 450V Ceiling Fan Capacitor

2 Wire ceiling fan capacitor capacity value 0.5mfd, tolerance ±5%, rated voltage 450V AC, maximum allowable voltage does not exceed 1.1 times the rated voltage, maximum allowable current does not exceed 1.3 times the rated current.

Specification

• Model: CCHN-FC-CBB61-005
• Capacity: 0.5μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 32(W) x 10(L) x 18(H)mm
• Certificate: CE, CQC

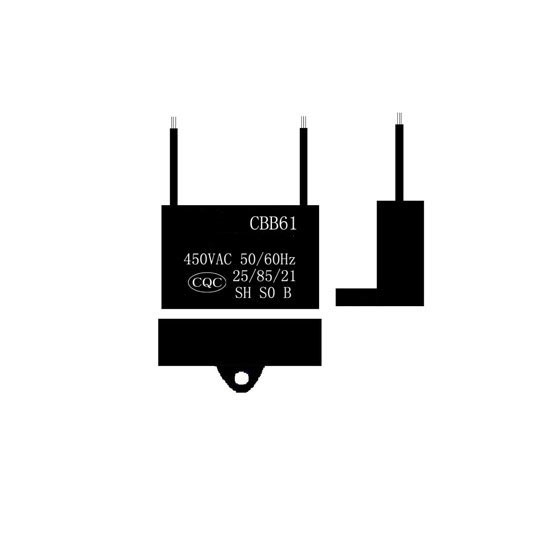

0.5μF Fan Capacitor 2 Wire Circuit Diagram

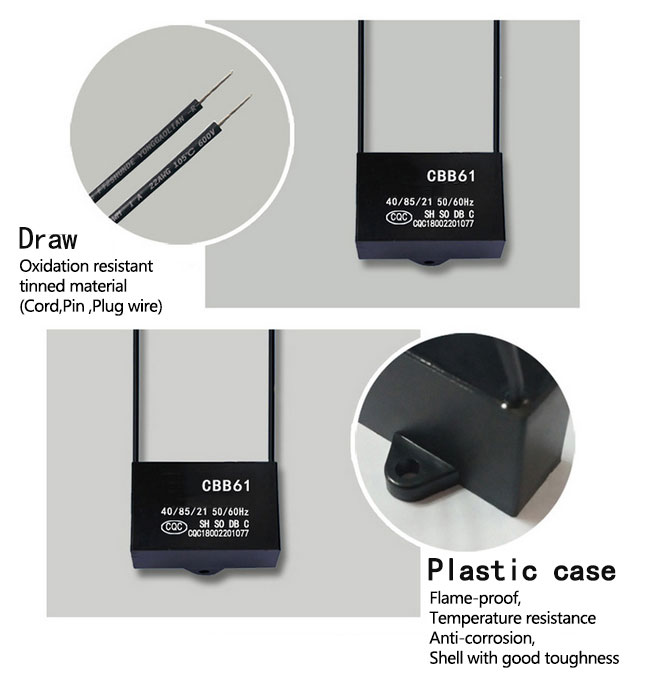

Ceiling Fan Capacitor Details

Tips: Do fan capacitors have polarity?

The capacitors are not positive or negative, the terminals are connected to the external metal layer, and the motor capacitor must be non-polarized. CCHN-CBB61 fan capacitors are widely used in ceiling fans, wall fans, standing fans, industrial fans, range hood fans, ventilating fans, pumps, motors, generators, etc.
