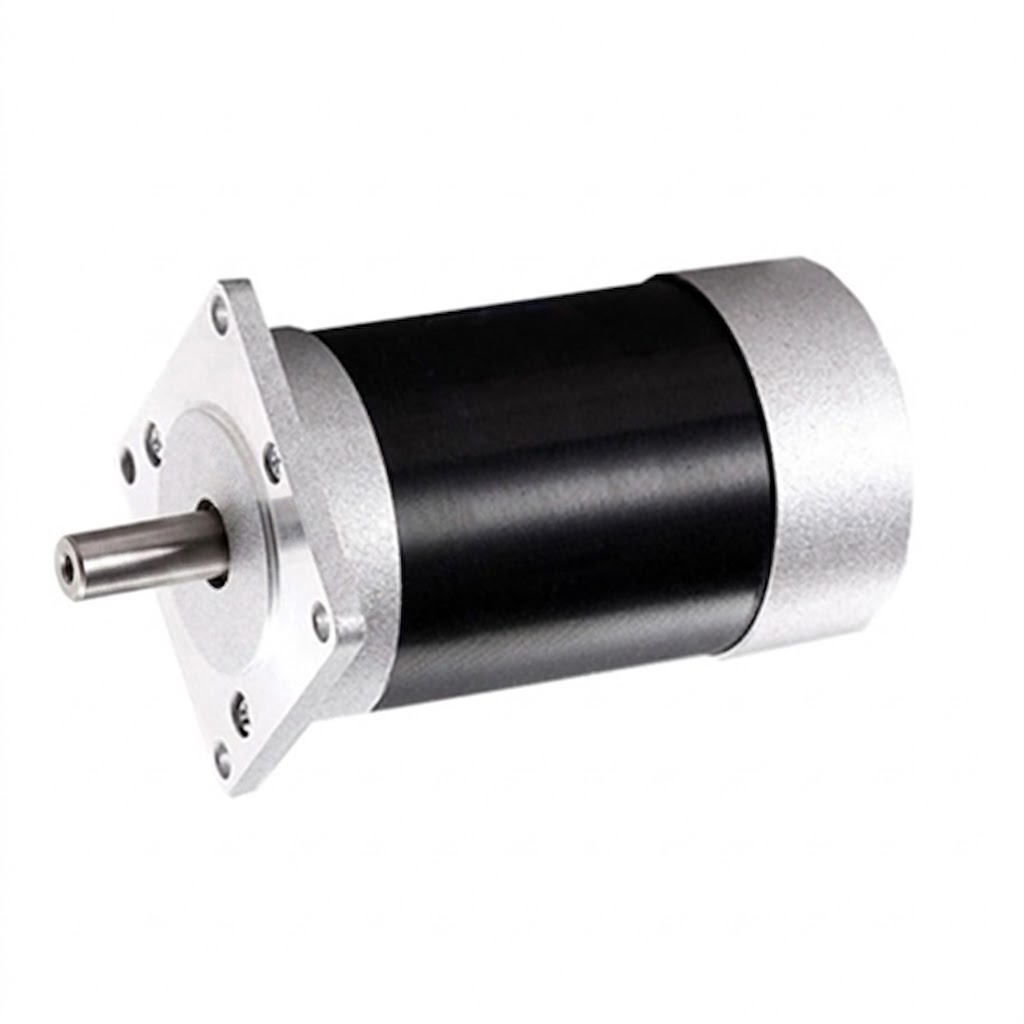

100W Brushless DC Motor, 12V/24V, 0.32 Nm

100W BLDC motor for sales at affordable price. 3 phase electric brushless motor with 3000 rpm rated speed, 0.32 Nm holding torque and peak torque up to 0.96 Nm. Combines with BLDC controller/ gearbox providing higher torque at 12V or 24V DC.
SKU: CCHN-BLDC-100R3
30-day Returns
Free Shipping
Delivery date: 6-25 days

Low cost 100 watt brushless DC motor, 3 phase BLDC motor controller for electric car, IP54, brushless design for long life, 12V/24V DC voltage, 3000rpm rated speed. Voltage, Brake, Matching Controller, Matching Gearbox options are available for your specific needs. In general, it would be more cost-effective to buy a complete set of our BLDC motors.

Specifications

Model CCHN-D2BLD100-12A-30S CCHN-D2BLD100-24A-30S CCHN-D2BLD100-36A-30S CCHN-D2BLD100-48A-30S
Rated Power 100W
Rated Voltage 12V DC 24V DC 36V DC 48V DC
Matched Controller KBS24051X (User Manual) CCHN-BLD300 CCHN-BLD120A CCHN-BLD300
Rated Current 10.42A 5.21A 3.4A 2.60A
Phase 3 phase
Number of Poles 4 pairs of poles (8 poles)
Rated Torque 0.32 Nm
Max. Torque 0.96 Nm
Rated Speed 3000 rpm for standard (or 2000 rpm when matching the worm gearbox)
No-load Speed 3300 rpm
No-load Current <1.2A <0.8A <0.6A <0.4A
Working Efficiency 85%
Square Flange Size 57 mm
Insulation Grade F
Protection Grade IP54
Brake Apparatus Voltage 24V DC/ 48V DC (The electromagnetic brake will trigger when the DC supply cuts off)
Brake Size Φ56*32mm
Motor Lead Length 1 meter
Working Temperature 10℃~+40℃
Humidity ≤90% (no condensation)
Certificate CE, RoHS, ISO
Weight 2.5 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of CCHN BLDC Motors can be customized.

Features

  1. High performance and low consumption
    100W brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
  2. Wide application range and good control effect
    BLDC motor works with a matching controller (CCHN-BLD750) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
  3. Wide control speed torque range
    Brushless DC motor works with a gearbox (choose planetary gearbox with gear ratio from 4:1 to 200:1 or worm gearbox with gear ratio from 7.5:1 to 100:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
  4. Low noise and smooth operation
    Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
  5. Good protection performance and continuous duty (24/7)
    100W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

BLDC motor line define

Dimension (Unit: mm)

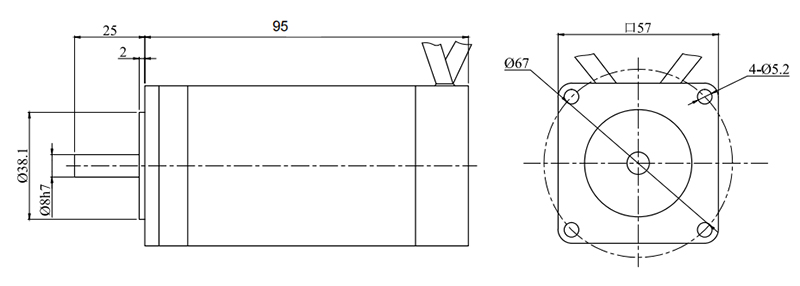

100W BLDC motor dimension

Speed - Torque Curve

100W bldc motor torque speed curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short time operation area
    The motor can run at a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

100W BLDC Motor Details

Tips: Why do brushless DC motors have three halls?

In order to rotate the brushless DC motor, there must always be a certain angle between the magnetic field of the stator coil and the magnetic field of the permanent magnet of the rotor. The process of rotor rotation is also the process of changing the magnetic field direction of the rotor. In order to make the two magnetic fields have an angle, the magnetic field direction of the stator coil must be changed to a certain extent. So how do you know to change the direction of the stator magnetic field? That depends on the three Halls. It can be assumed that the three Halls are responsible for telling the controller when to change the direction of the current.
