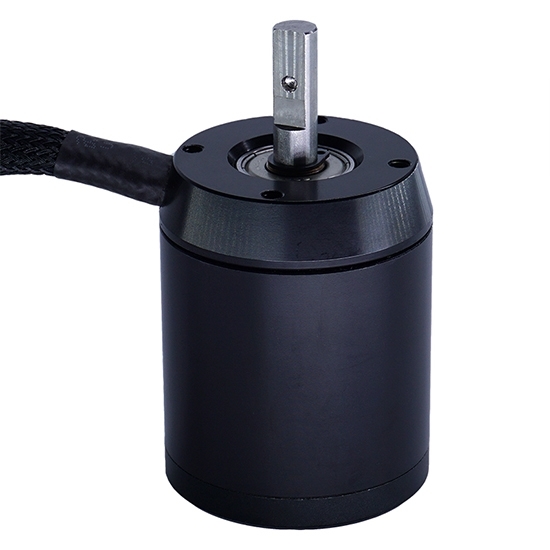

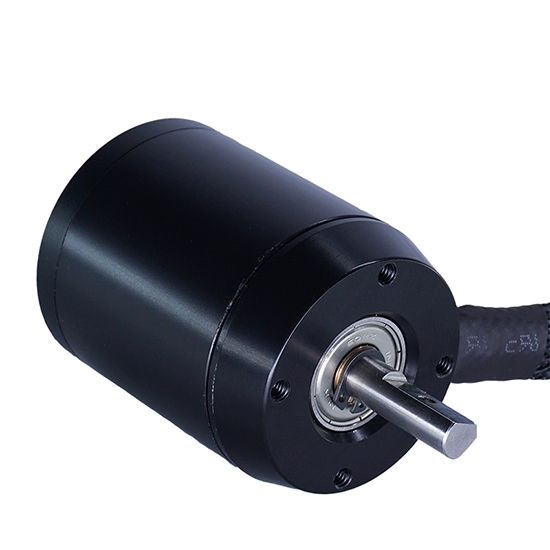

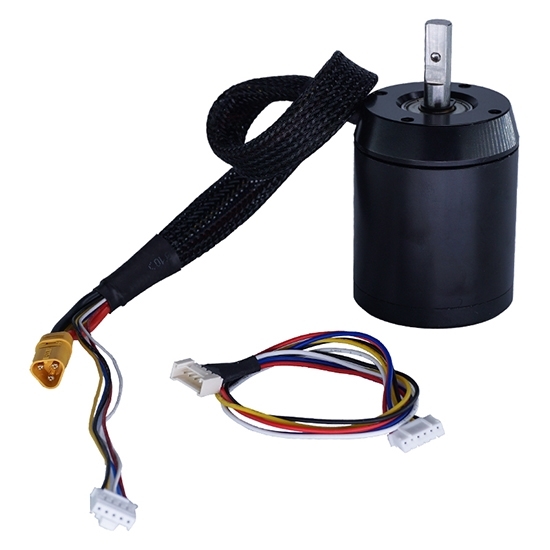

1800W 200KV 6-12S Outrunner Brushless Motor for Skateboard

1800W 200KV 6-12S Outrunner Brushless Motor for Skateboard

Buy outrunner brushless motor for electric skateboard/longboard use. Maximum power 1800W, optional rotation speed 200KV/140KV, input voltage 6-12S, current 38A, torque 1.7N.m, shaft diameter 8mm. Matching kit of BLDC motor pulley and speed controller is recommended.

SKU: CCHN-BLDC-H5065

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price 200KV/140KV outrunner brushless DC motor for sale. Max power 1.8kW, power supply 6-12S. Combined with BLDC motor driver to control speed for your electric skateboard/longboard/mountainboard.

Specification

Model	CCHN-BLDC-H5065
Max Power	1800W (2.4 hp)
Voltage * KV Value	200KV
Max Current	38A
Voltage Range	6-12S
Max Torque	1.7 N.m
Rated Power	1000W
Shaft Specification	Φ12-0.014/ -0.009
Resistance	80.0mΩ
Insulation Current	AC 500V/ 50Hz/ 1mA/ 3S
Shaft Diameter	8mm (Recommended CCHN 8mm D-shape motor pulley)
Three-phase Leads	3*16AWG (3.0mm)
Internal Structure	12N/ 14P
Inductor	47.5υH
Weight	475g

*Note: The motor is powered by 6-12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

*No-load Speed = Voltage * KV Value

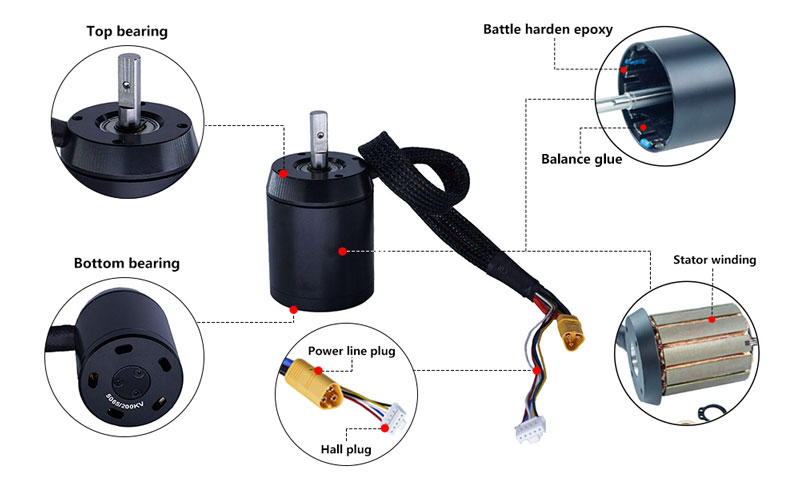

1200W Outrunner Brushless DC Motor Details

Brushless DC Motor Dimensions Drawing (Unit: mm)

1800W Brushless Motor for Electric Skateboard dimension

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20*	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Principle analysis for the propeller of electric skateboard brushless motor.

A propeller is usually composed of blades and blade valleys. The connecting part of propeller and tail shaft is the blade valley, which is usually conical. To reduce the water resistance, a fairing (hub cap) was added at the rear end of the blade valley to form a lightweight downstream streamline body together with the blade valley. The blade is fixed on blade valley. The propeller usually has 2-6 blades. The more blades, the smaller the vibration of blades.

When the propeller of an electric skateboard BLDC motor rotates, the circular trajectory of the blade tip is called the tip circle. Diameter of the tip circle is the diameter of propeller. Distance from the tip of blade to the centerline of blade is called propeller radius. The area of tip circle is called disc area. When the electric skateboard brushless DC motor starts, propeller starts to rotate forward. The side of blade that first contacts the water is called the leading surface, and the other side is called the follower surface.
