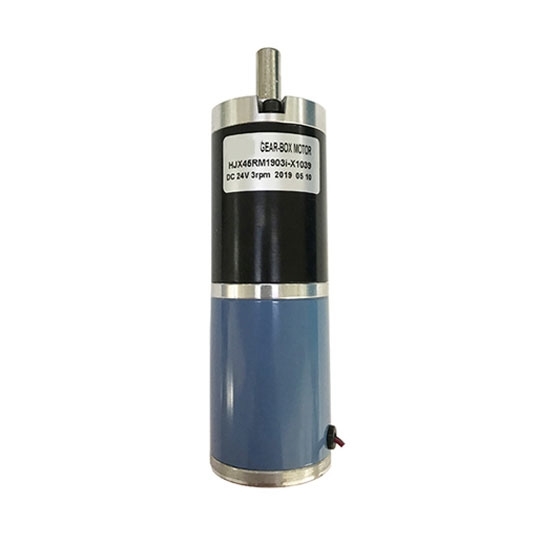

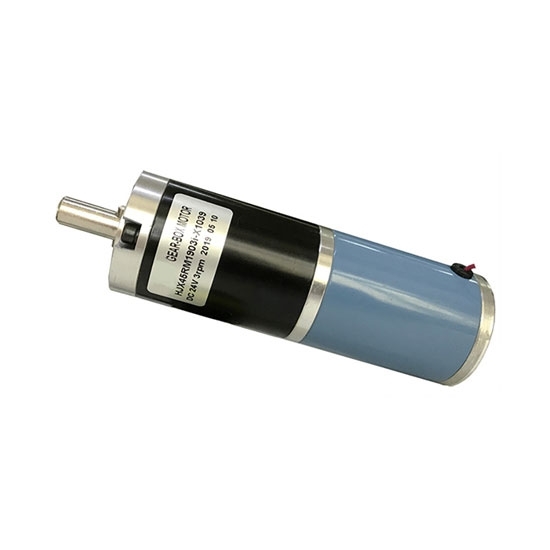

Brushed DC Motor With Gearbox, 4000rpm, 12V/24V, 45mm

Brushed DC Motor With Gearbox, 4000rpm, 12V/24V, 45mm

27W/28W small brushed motor with 36mm diameter gearbox, 12V or 24V DC, 4000rpm rated speed, 5000rpm no load speed, gear ratio from 1/3.7 to 1/139 to meet different industrial applications.

SKU: CCHN-BDM-4000R45

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy 12V/24V brushed DC motor online. It comes with 36mm diameter gearbox, which has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.

Features

Brushed DC motor with gearbox has compact structure and strong overload capacity.
The gear ratio is finely graded, which provides you wide selections for different applications.
BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

Specification

Model			CCHN-45RM-ZY4566R3
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC										24V DC
	No Load	Speed	5000rpm										5000rpm
		Current	0.43A										0.20A
	At Max Efficiency	Speed	4000rpm										4000rpm
		Current	2.45A										1.45A
		Torque	45..59mN·m										46.08mN·m
			465g·cm										470g·cm
		Power	27W										28W
	Stall	Torque	270.4mN·m										289.2mN·m
			2758g·cm										2950g·cm
		Current	13.2A										6.5A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		45										45
	Gearbox Length (mm)		30		39.8				49.5				30		39.8				49.5
	Rated Torque (kg·cm)		1.5	2.2	5.1	7.1	10.0	11.8	16.6	23.1	32.6	45.2	1.6	2.2	5.2	7.2	10.2	12.2	16.8	23.4	32.9	45.7
	Rated Speed (rpm)		1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8	1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8
	Stall Torque (kg·cm)		8.0	9.8	22.9	32.1	45.2	48.0	74.7	104.0	146.5	203.6	7.0	9.9	23.2	32.5	45.7	52.0	75.5	105.1	148.1	205.8

Dimensions

Units:mm

Dimensions of Brushed DC Motor with Gearbox 4000rpm 12V/24V 45mm

Details

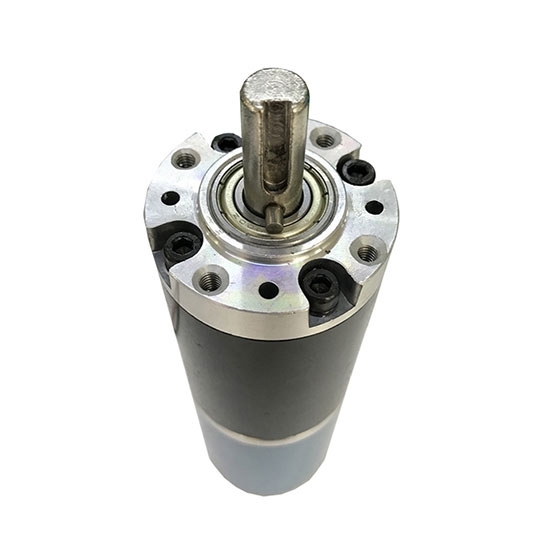

45mm Brushed DC Motor with Gearbox Details
