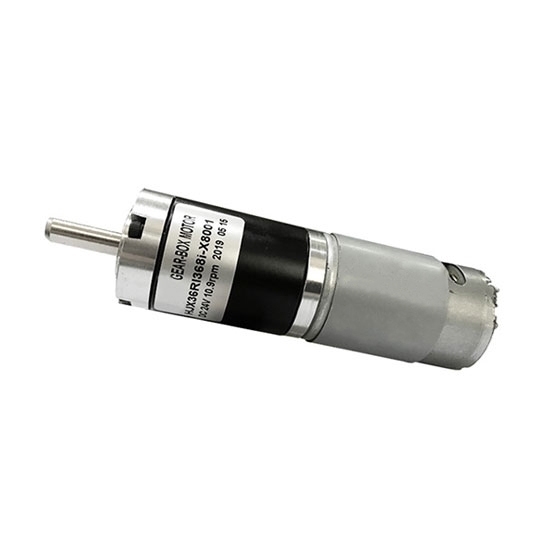

Brushed DC Motor with Gearbox, 4000rpm, 12V/24V, 36mm

Brushed DC Motor with Gearbox, 4000rpm, 12V/24V, 36mm

Buy brushed DC motor with 36mm diameter gearbox online, 12V or 24V rated voltage, 23.5 or 25.4mN•m peak torque, 4000rpm rated speed, gear ratio from 1/3.7 to 1/139 to get different rated torque and speed.

SKU: CCHN-BDM-4000R36

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

4000rpm brushed DC motor with 36mm gearbox is suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine, etc.

Features

Brushed DC motor with gearbox has compact structure and strong overload capacity.
The gear ratio is finely graded, which provides you wide selections for different applications.
BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

Specification

Model			CCHN-36RI-ZY3757R3
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC										24V DC
	No Load	Speed	5000rpm										5000rpm
		Current	0.38A										0.2A
	At Max Efficiency	Speed	4000rpm										4000rpm
		Current	1.45A										0.726A
		Torque	24.5mN·m										25.4mN·m
			250g·cm										260g·cm
		Power	10W										10.5W
	Stall	Torque	115.4mN·m										134.3mN·m
			1380g·cm										1500g·cm
		Current	5.8A										2.884A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		36										36
	Gearbox Length (mm)		28.2		37				46				28.2		37				46
	Rated Torque (kg·cm)		0.8	1.2	2.7	3.8	5.4	7.0	8.9	12.4	17.5	24.7	0.9	1.2	2.8	4.0	5.6	7.2	9.3	9.4	13.3	18.4
	Rated Speed (rpm)		1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8	1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8
	Stall Torque (kg·cm)		3.7	5.3	12.3	17.3	24.3	30.0	40.2	55.9	78.8	111.0	3.9	5.5	12.8	18.0	25.3	36.0	41.8	42.4	59.7	82.9

Dimensions

Units: mm

Dimensions of Brushed DC Motor with Gearbox 4000rpm 12V/24V 36mm

Details

36mm Brushed DC Motor with Gearbox Details

Tips: How to select a brushed DC motor with gearbox?

Level of protection

The level of protection of the brushed DC motor shell should be considered according to the provisions of the natural environment of the installation site.

Rated current and frequency

The rated operating standard voltage and frequency of the BDC motor shall be consistent with the operating voltage and frequency of the applied switching power supply.

Maximum power

The maximum power of the brushed gear motor should be consistent with the mechanical power of the drive as far as possible.
