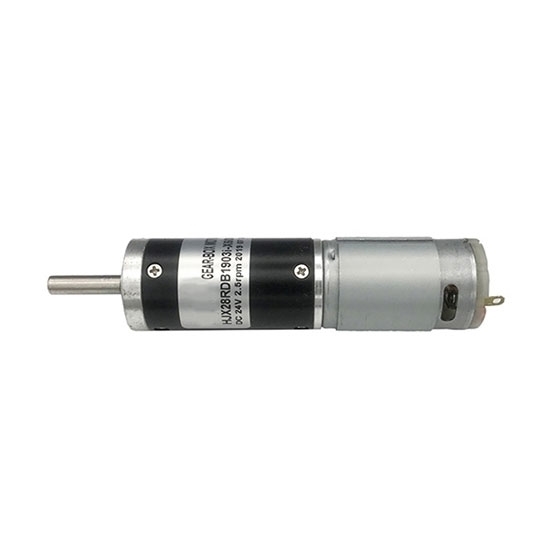

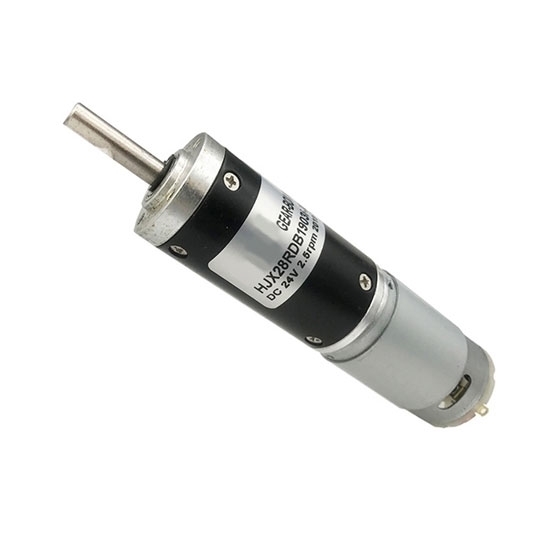

Brushed DC Motor with Gearbox, 7000rpm, 12V/24V, 28mm

Brushed DC Motor with Gearbox, 7000rpm, 12V/24V, 28mm

High torque brushed electric DC motor with 28mm diameter gearbox at low price, 12V or 24V rated voltage, 7000rpm speed, 7800rpm no load speed, gear ratio from 1/3.7 to 1/139 available, can reach 8.3 or 8.6mN·m torque at maximum efficiency.

SKU: CCHN-BDM-7000R28

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Small brushed DC gear motor with 7000rpm speed, operates with 12V or 24V. It is suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine, etc.

Features

Brushed DC motor with gearbox has compact structure and strong overload capacity.
The gear ratio is finely graded, which provides you wide selections for different applications.
BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

Specification

Model			CCHN-28RDB-ZY2847R23
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC										24V DC
	No Load	Speed	7800rpm										7800rpm
		Current	0.14A										0.08A
	At Max Efficiency	Speed	7000rpm										7000rpm
		Current	0.45A										0.25A
		Torque	8.3mN·m										8.6mN·m
			85g·cm										88g·cm
		Power	5.5W										5.8W
	Stall	Torque	67.5mN·m										68.8mN·m
			689g·cm										700g·cm
		Current	1.8A										1.0A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		28										28
	Gearbox Length (mm)		30		38.6				45				30		38.6				45
	Rated Torque (kg·cm)		0.3	0.4	0.9	1.3	1.8	2.4	3.0	4.2	6.0	8.3	0.3	0.4	1.0	1.4	1.9	2.5	3.1	4.4	6.2	8.6
	Rated Speed (rpm)		1905	1355.8	514.6	367.2	261.1	178.0	138.2	99.3	70.5	50.7	1905	1355.8	514.6	367.2	261.1	178.0	138.2	99.3	70.5	50.7
	Stall Torque (kg·cm)		2.6	3.7	8.7	12.2	17.2	19.0	28.4	39.5	55.7	77.4	2.7	3.9	9.0	12.7	17.8	19.6	29.4	40.9	57.7	80.1

Dimensions

Units: mm

Dimensions of Brushed DC Motor with Gearbox 7000rpm 12V/24V 28mm

Details

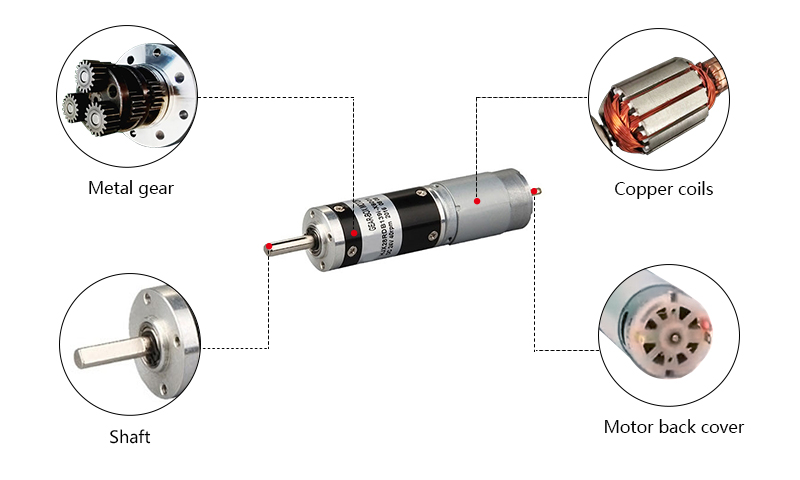

28mm Brushed DC Motor with Gearbox Details
