24V-60V Brushless DC Motor Controller for 36/48V BLDC Motor

24V-60V Brushless DC Motor Controller for 36/48V BLDC Motor

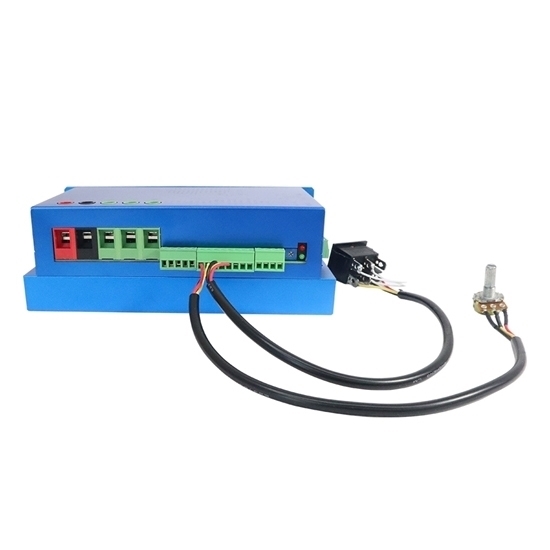

Low price brushless DC motor controller works at 24V to 60V power supply to control speed for 36V/ 48V BLDC motor. This motor driver is equipped with a variety of communication interfaces, and can realize different mode control, PWM open loop and speed closed loop.

SKU: CCHN-BLDC-C50

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

BLDC motor driver is equipped with the basic control interface and the upper computer can realize the main functions of the whole system. The hall sensor motor can be controlled by square wave or positive wave algorithm.

Specification

Model	CCHN-BD50 (Click it to view more controller specs)
Rated Current	50A
Rated Input Voltage Range	DC +24~ +72V
Operating Temperature Range	-40-+80℃
IO Input	Supports NPN, PNP
	NPN: 0V is low, 5~24V is high, current 20mA
	PNP: 13V high output, low to ground
IO Output	Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA
SV Input Characteristics	DC 0-5V Range or DC 0-10V Range
	Deadband Voltage Adjustment Range: 0.2~1.0V
	Input Internal Resistance:100k
PWM Input Characteristics	Frequency Range: 1~10kHz (50% duty cycle)
	Duty Cycle Range:0~100%(100Hz-1000Hz)
	Signal Voltage: DC 5~24V
Carrier Frequency	10~20kHz
485 Communication Parameters	ID: 1~255
485 Communication Parameters	Baud Rate: 9600/19200/38400/57600/115200 bps
CAN Communication Parameters	ID: 0~255
CAN Communication Parameters	Baud Rate: 125/250/500 kbps
Load	150% of Rated Current
Load	Overload Duration: 30~1s (at 150% Rated)
External Temperature Sensor	Customizable
External Temperature Sensor	ntc=mf52-103f-3435-55l
Control Method	Torque Loop (Open Loop) Speed Loop (Close Loop)
Acceleration and Deceleration Times	0.5-16s Motor Without Load
Overheating Protection	Inside the Driver:+85℃
Note*	RS485 (Modbus RTU) and CAN Bus cannot be used at the same time. VRM and PWM cannot be used at the same time.

Dimensions (Unit: mm)

Dimension of Brushless DC Motor Driver 24V 60V

Note:

Please install, connect, and debug the motor controller with industry technicians.
It is not allowed to install, remove,e or replace the circuit of the motor controller when it is live.
Be sure to install necessary protective devices between the power input and the power supply (battery) to avoid dangerous accidents or fatal injuries.
Need to install: overcurrent protector, insurance, emergency switch.
Please do the isolation and insulation protection between the motor controller and the ground and equipment.
If there is a real need for live debugging of this motor controller, please choose a non-metallic well-insulated screwdriver or special debugging tool.
This motor controller shall be installed in a well-ventilated environment.
This motor controller cannot be directly used in high humidity, dust, corrosive gas, or strong vibration of the abnormal environment.

Details

24V-60V Brushless DC Motor Controller Details

Tips: What is a brushless DC motor controller?

The brushless DC motor controller is composed of the motor's main body and the driver. It is a typical mechatronic product. The BLDC motor drivers have the advantages of good adjustment and starting performance of the DC motor and the simple structure of the asynchronous motor without maintenance. The highly reliable motor speed regulation field has been widely used.

The motor controller is the command center for the normal operation of the brushless DC motor and the realization of various speed-regulating servo functions. It mainly completes the following functions: logically synthesize various signals to provide various control signals to the drive circuit; generate PWM modulation signals, realize the speed regulation of the motor, adjust the speed of the motor to the current loop, so that the system has better dynamic static performance, and realize the fault protection functions such as short circuit, over current, under voltage, and locked rotor.
