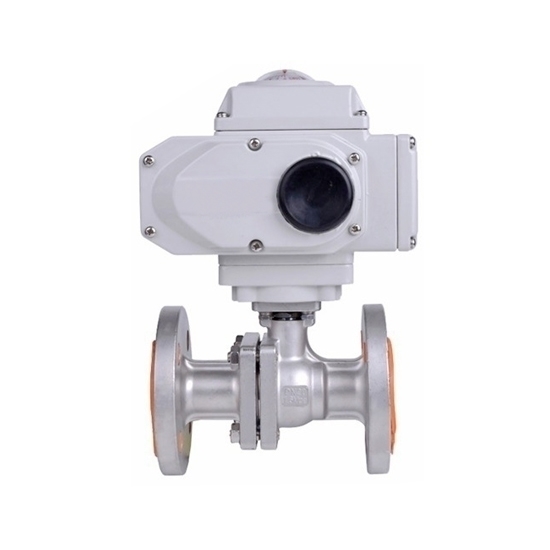

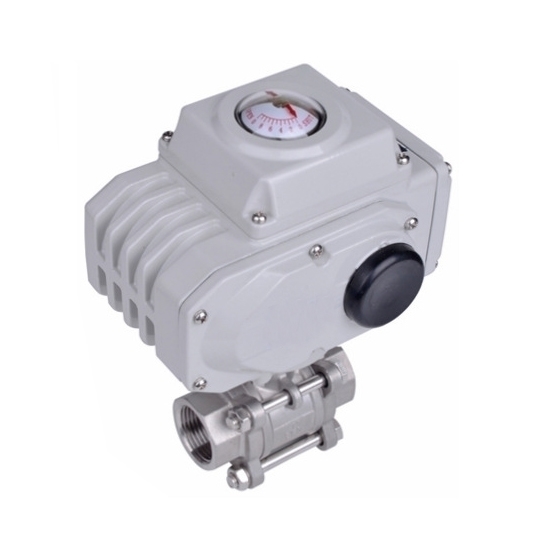

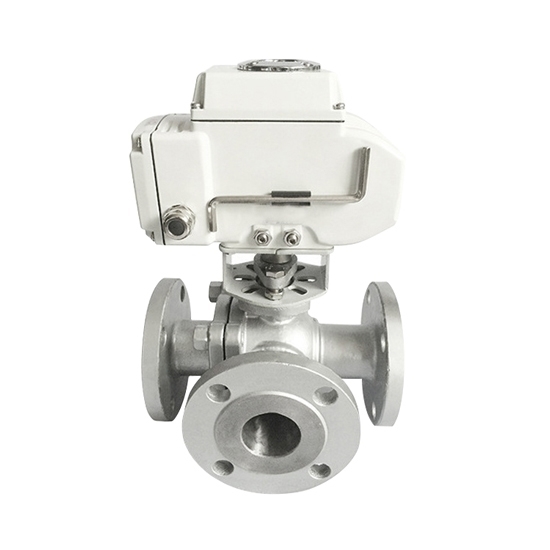

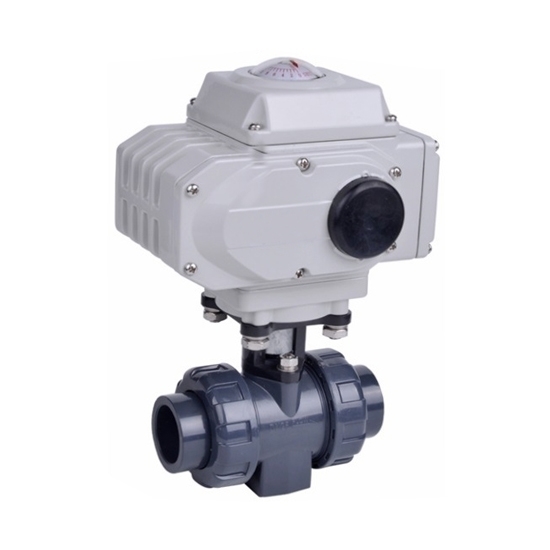

2-1/2" Electric Actuated Ball Valve, 2 Way/ 3 Way

Industrial 2-1/2 inch electric actuated ball valve for sale at factory price, DN 65 (65mm) port size, selectable 110V AC, 220V AC, 380V AC, and 24V DC power supply, ball valve type of threaded, flanged and PVC true union, 2 way or 3 way for transferring air, water, oil, gas, liquid, etc.

SKU: CCHN-EBV-65B

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This ball valve cannot be used for drinking water.

Industrial electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	CCHN-EBV-65B
	Port Size	2-1/2 inch (DN65, 65mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	CCHN-KLST-10	CCHN-KLST-20	CCHN-KLST-40
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s	80N.m, 9s 100N.m, 15s 150N.m, 20s 200N.m, 30s/ 60s	150N.m, 9s 250N.m, 15s 400N.m, 20s 600N.m, 30s/ 60s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Note: Threaded ball valve and PVC true union ball valve match with CCHN-KLST-10 electric actuator, 2 way flanged ball valve matches with CCHN-KLST-20 electric actuator, and 3 way flanged ball valve matches with CCHN-KLST-40 electric actuator.

Body Dimension (Unit: mm)

2 way, stainless steel, threaded type

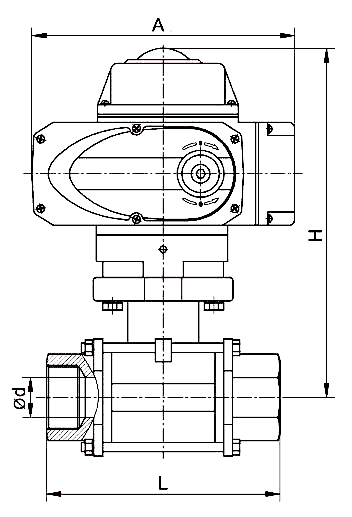

2 way stainless steel threaded electric ball valve dimension

φd	L	A	H
65	180	198	256

2 way/ 3 way stainless steel, flanged type

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
65	220	18	2	180	120	145	294	294	255	255	260	4-φ18

2 way, PVC true union type

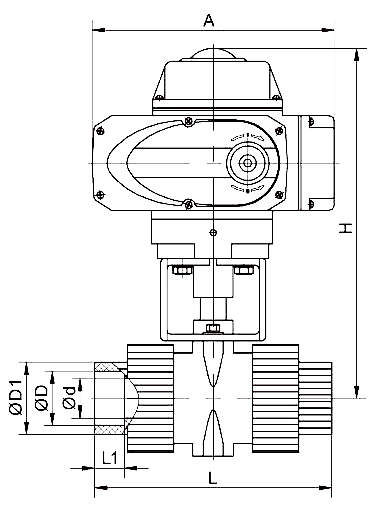

2 way PVC pneumatic actuated ball valve dimension

DN	D	D1	d	L1	A	H
65	75	92	61	32	198	308

Three Way Ball Valve Flow Pattern

T Type:

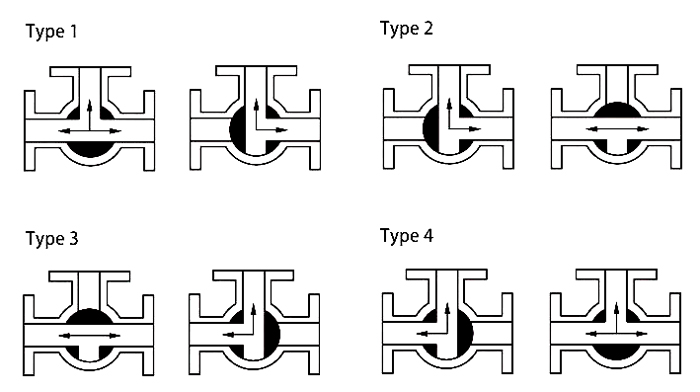

3 way pneumatic ball valve flow patterns t port

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: Electric actuated ball valve working principle

The electric actuated ball valve is composed of a 2 way or 3 way ball valve and an electric actuator. The ball valve structure is a 90-degree spool. The electric actuator inputs a standard data signal of 0 to 10 mA. The motor unit drives the gear, turbine and worm torque. Power switch and adjustment Valves, operated with electricity.
