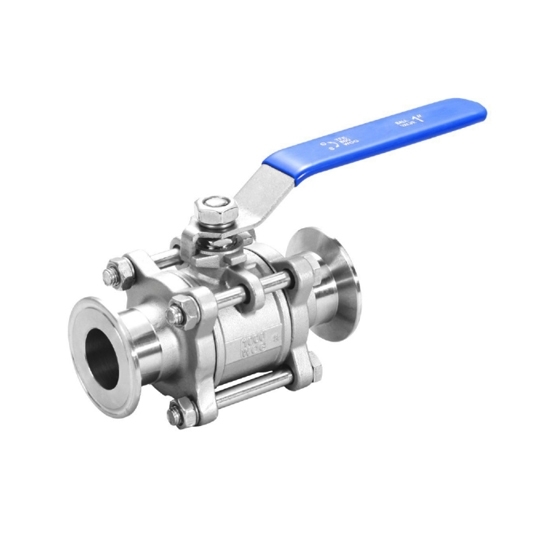

Stainless Steel Ball Valve, DN20-DN100, Quick Fit Clamp

Stainless Steel Ball Valve, DN20-DN100, Quick Fit Clamp

Three-piece quick release stainless steel ball valve for sale, has optional applicable pressure PN0.6, 1, 1.6, 2, 2.5MPa and strength test pressures between PT0.9 and 3.8 MPa. Available in nominal diameters DN20 to DN100. Ball valve is tested for low-pressure gas seals at 0.6 MPa. Stainless steel ball valve is suitable for handling water, oil, and gas within a temperature range of -29°C to 180°C, as well as specific chemical mediums like nitric acid and acetic acid. Ideal for industrial, chemical, and sanitary environments.

SKU: CCHN-BV-GQ81F-16P

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This ball valve cannot be used for drinking water.

Low price three-piece stainless steel ball valve supports pressures up to 2.5MPa, sizes DN20 to DN100, and works from -29°C to 180°C. It handles water, oil, gas, nitric acid, and acetic acid, ideal for industrial and sanitary use.

Specification

Model	CCHN-GQ81F-16P
Applicable pressure	PN0.6, 1.0, 1.6, 2.0, 2.5 MPa (optional)
Strength test pressure	PT0.9, 1.5, 2.4, 3.0, 3.8 MPa
Nominal diameter DN	DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100 (optional)
Low-pressure gas seal test pressure.	0.6 MPa
Applicable medium	Water/Oil/Gas, -29~180℃, CCHN-Q81F-(6-25)C
	Nitric Acid, CCHN-Q81F-(6-25)P
	Acetic Acid, CCHN-Q81F-(6-25)R

Parts Name	CCHN-Q81F-(6-25)C	CCHN-Q81F-(6-25)P	CCHN-Q81F-(6-25)R
Body	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Bonnet	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Ball	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Stem	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Sealring	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)
Packing	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)

Feature

High Platform Design: The elevated platform supports direct actuator mounting, enabling seamless automation without extra brackets or connectors, simplifying installation and maintenance.
Three-Piece Construction: Features two end caps and a central body, allowing easy disassembly for cleaning, inspection, and component replacement without disrupting pipelines.
Quick-Install Connection: Equipped with clamps or quick-install flanges, ensuring rapid integration, reduced downtime, and suitability for frequent cleaning in sanitary applications.
Stainless Steel Durability: Made from corrosion-resistant stainless steel, it ensures hygiene and long-term reliability in demanding conditions.
Versatile Performance: Handles liquids, gases, and steam across various pressures and temperatures, making it adaptable for diverse applications.

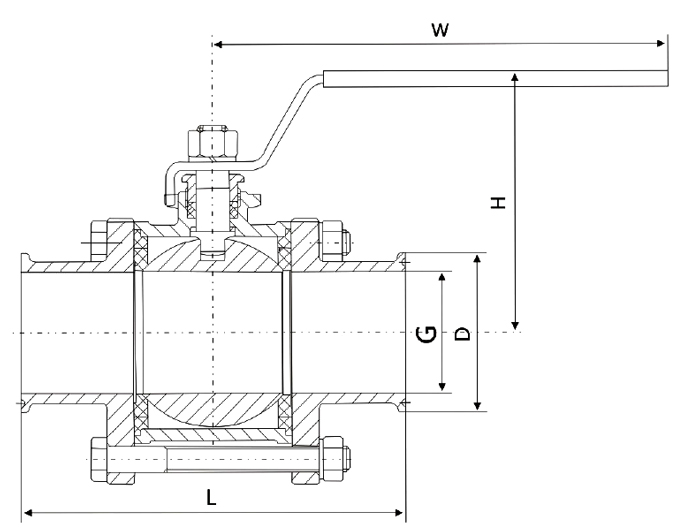

Dimension (unit: mm)

DN	G	D	L	H	W
15	1/2"	34/50.5	100	55	100
20	3/4"	34/50.5	100	60	120
25	1"	50.5	120	70	140
32	11/4"	50.5	130	82	140
40	11/2"	50.5	140	90	180
50	2"	64	156	105	200
65	21/2"	91	196	120	220
80	3"	106	228	132	240
100	4"	119	242	158	310

Applications

Tips: What are the advantages of the 3-piece design in this ball valve?

The 3-piece design offers significant benefits in terms of maintenance and versatility. It allows for easy disassembly without disturbing the pipeline, enabling quick cleaning, inspection, and replacement of internal components. This design is particularly advantageous in industries requiring frequent maintenance or stringent cleanliness, such as food, beverage, and pharmaceuticals. Additionally, the compact structure makes it easier to install and handle during system upgrades or repairs.
