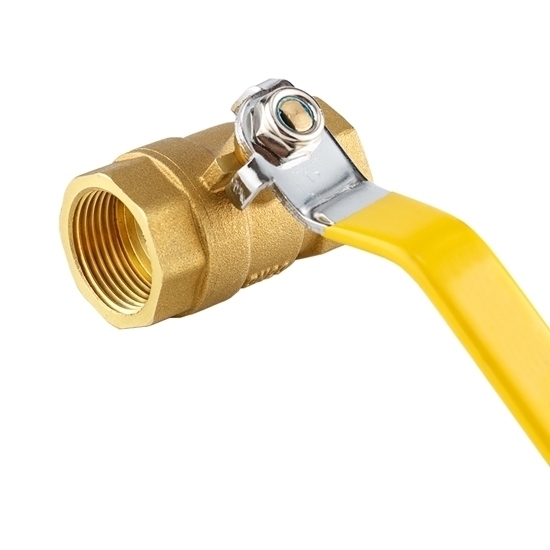

1-1/4" Brass Ball Valve, 2 Piece

1-1/4 inch brass ball valve for sale at low price, 2 piece, DN32, 1.6MPa, thread connection. The valve body is made of high quality brass forging to prevent leakage, which used for water and flow control. This brass ball valve can not be used for drinking water.

SKU: CCHN-BBV-DN32

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

The valve body is made from high-quality brass forging to prevent leakage. 1-1/4 inch brass ball valve is manufactured by a high-precision special machine with low flow resistance. The medium inside the valve body has a straight channel, and the medium flows in a straight line.

Specification

Model: CCHN-BBV-DN32
Size: 1-1/4 inch (DN32)
Nominal Pressure: 1.6MPa
Body Material: Brass
Connection Type: Thread
Standard: Compliant with ISO 228 Standard
Applicable Temperature: -10℃≤T≤120℃
Working Medium: Water, Oil, Non-Corrosive and Non-Combustible Gas
Weight: 580g

Dimensions & Details (Unit: mm)

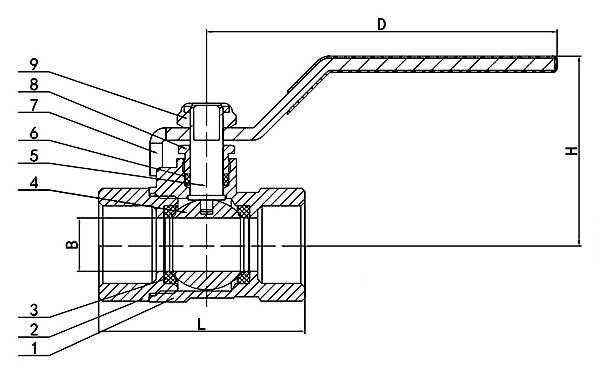

Dimensions of brass ball valve

DN	Size	L	B	H	D
32	1-1/4	74	29	75	115

Number	1	2	3	4	5	6	7	8	9
Component	Valve Body	Valve Cap	Valve Seat	Valve Ball	Valve Stem	Filler	Iron Handle	Pressure Cap	Locknut
Material	Brass	Brass	PTFE	Iron	Brass	PTFE	Iron	Brass	Stainless Steel

Tips: What is a brass ball valve?

Brass ball valve is evolved from a cock. Its opening and closing part is a sphere, and the sphere is rotated 90° around the axis of the valve stem to achieve the purpose of opening and closing. Brass ball valves are mainly used to cut off, distribute and change the flow direction of the medium. The ball valve designed with V-shaped opening also has a good flow adjustment function.
