1-1/2" Pneumatic Actuated Ball Valve, 2 Way/ 3 Way

Industrial 2 way / 3 way pneumatic ball valve with pneumatic actuator can be selected threaded type, flanged type and PVC true union type. Air actuated ball valve comes with 1-1/2 in. port, PVC or SS body material, working temperature from -30 °C to 180 °C, perfect for water, gas and fluid control.

SKU: CCHN-PBV-40A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This ball valve cannot be used for drinking water.

Compact 2 way/ 3 way ball valve with pneumatic actuator requires compressed air to work, which has such advantages as small fluid resistance, simple structure high performance and reliable sealing. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	CCHN-Q611F-16P-DN40	CCHN-Q641F-16P-DN40	CCHN-Q691X-10U-DN40	CCHN-Q614F-16P-DN40	CCHN-Q615F-16P-DN40	CCHN-Q644F-16P-DN40	CCHN-Q645F-16P-DN40
	Ball Valve Type (Optional)	2 Way Threaded Type	2 Way Flanged Type	2 Way PVC True Union Type	3 Way Threaded Type, L Port	3 Way Threaded Type, T Port	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	1-1/2 inch (DN40, 40mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)	Stainless Steel (SS 304)	PVC	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)	Stainless Steel (SS 304)
Pneumatic Actuator	Model	CCHN-AT063D	CCHN-AT075D	CCHN-AT063D	CCHN-AT075D	CCHN-AT075D	CCHN-AT088D	CCHN-AT088D
	Bore Size	63mm	75mm	63mm	75mm	75mm	88mm	88mm
	Air Supply Port	1/4 inch	1/4 inch	1/4 inch	1/4 inch	1/4 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

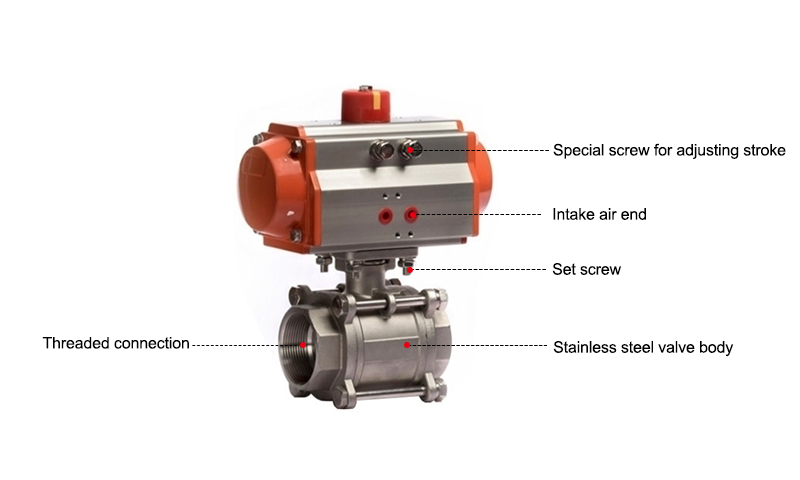

Pneumatic Ball Valve Details

Body Dimension (Unit: mm)

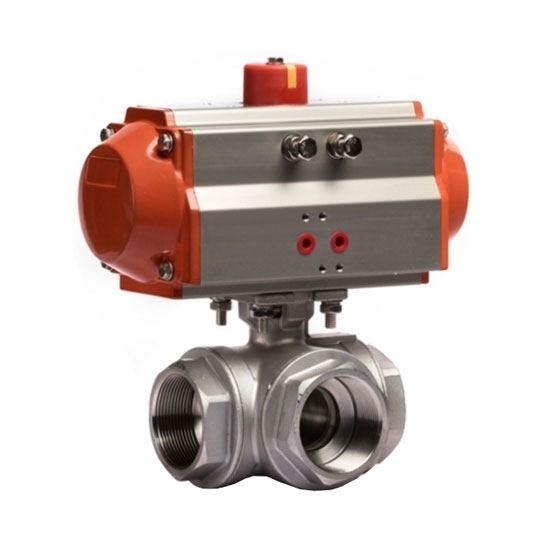

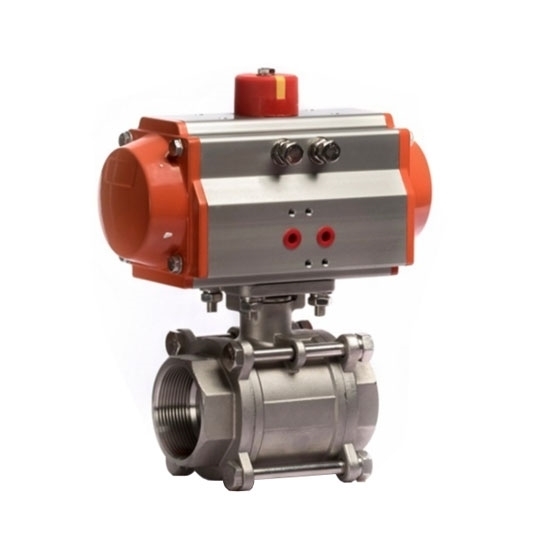

2 way/ 3 way, stainless steel, threaded type

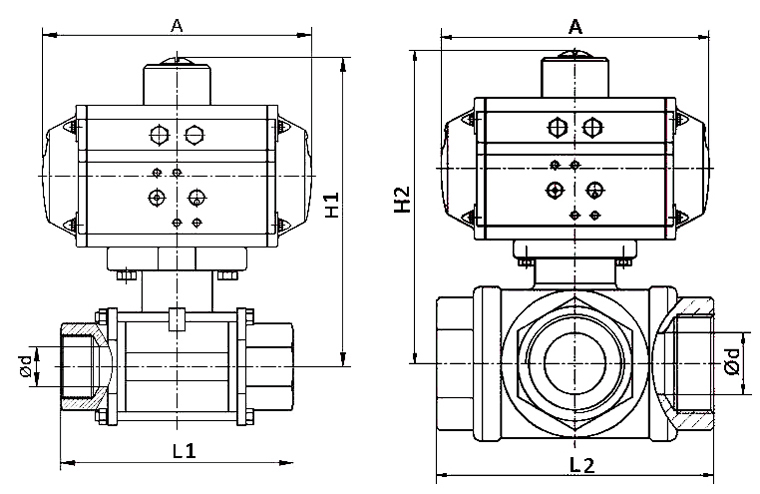

2 way 3 way stainless steel threaded type pneumatic ball valve dimension

φd	L1	A	H1	L2	H2
38	112	167	181	126	200

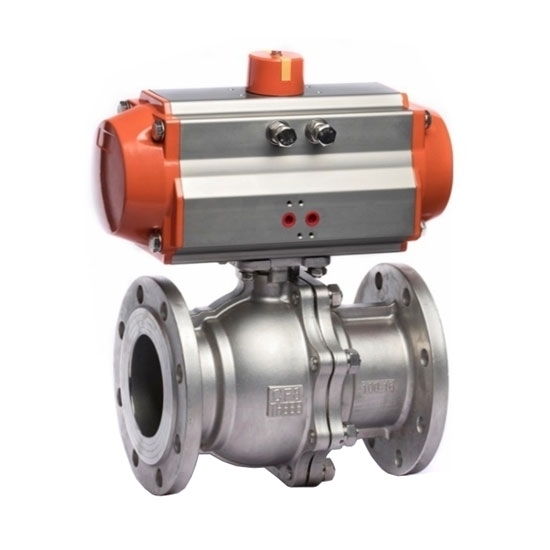

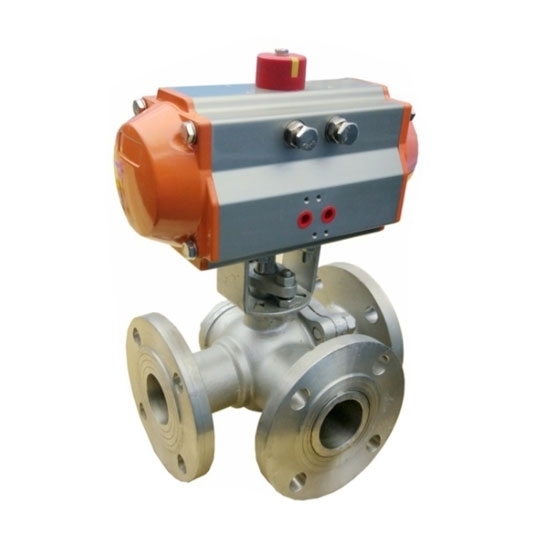

2 way/ 3 way stainless steel, flanged type

2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
40	180	17	2	145	85	110	214	225	213	250	220	4-φ18

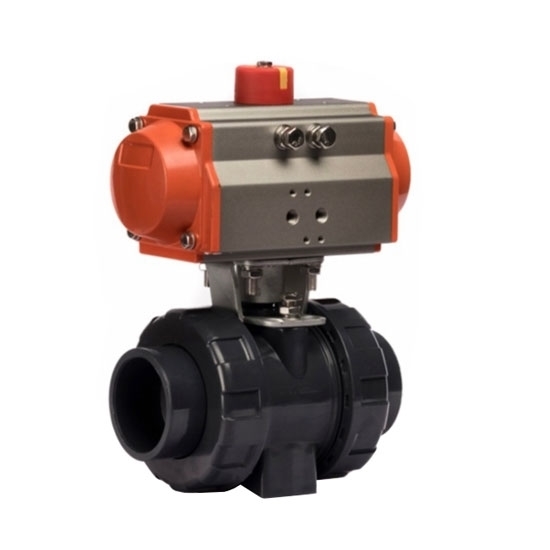

2 way, PVC true union type

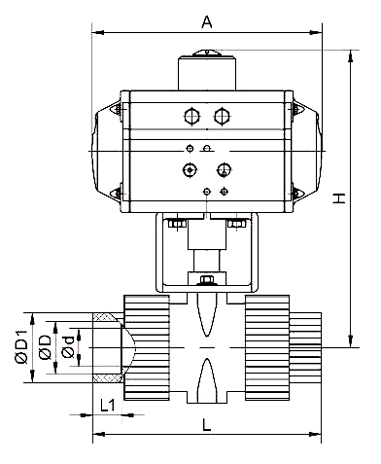

2 way PVC pneumatic ball valve dimension

DN	D	D1	d	L1	A	H
40	50	65	38	25	167	245

Pneumatic Actuator Dimension (Unit: mm)

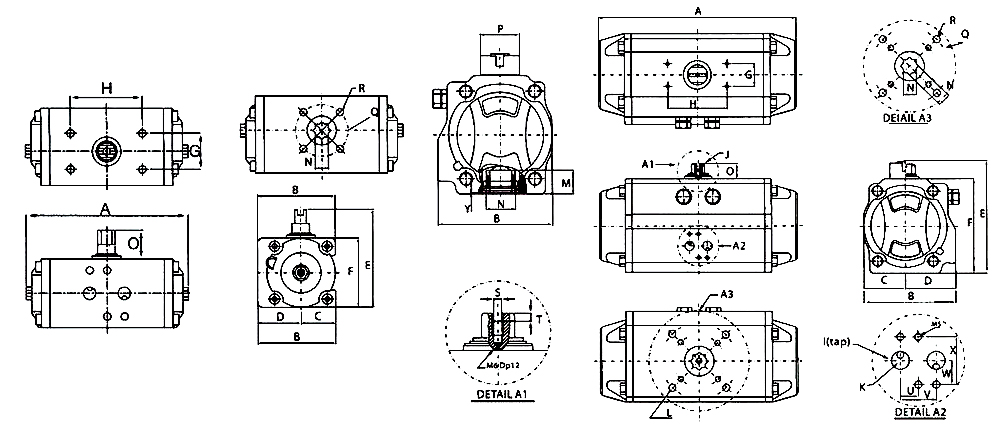

Pneumatic actuator dimension

CCHN-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

CCHN-AT075D

Q	A	B	C	D	E	F	G	H	I
Φ50/Φ70mm	213mm	93mm	42.5mm	50.5mm	130mm	102mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

CCHN-AT088D

Q	A	B	C	D	E	F	G	H	I
Φ50/Φ70mm	250mm	105mm	49.5mm	55.5mm	145mm	115mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

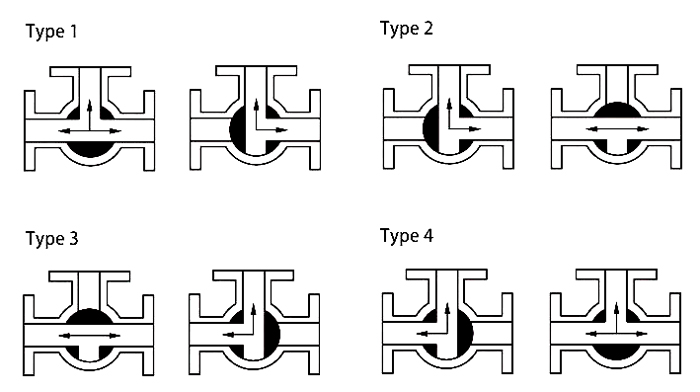

3 way pneumatic ball valve flow patterns t port

L Type:

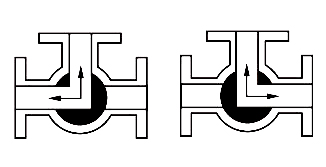

3 way pneumatic ball valve flow patterns l port

Tips: Pneumatic actuated ball valve troubleshooting

Pneumatic ball valve has no feedback signal.

The signal line of the pneumatic ball valve consists of a pair of control signal lines and a pair of feedback signal lines. When the PLC gives a signal to the valve, the signal is converted in the positioner of the regulating valve, and the action of the valve stem is controlled by the air source pressure. The stroke of the valve stem transmits the opening of the valve through the feedback signal of the regulating valve.

If there is no feedback signal from the pneumatic ball valve, use a multimeter to check whether there is voltage at each contact. To check for proper wiring connections, check for damaged signal wires, and check for loose signal wires.

The valve cannot be closed to the zero position.

It is actually closed to the zero position, but the feedback indication is not there. This is a signal problem, which can be solved by adjusting the positioner.
It is actually not closed tightly, and the most likely cause is that the valve sealing gasket is damaged. Or the rotation of the valve stem connection is blocked, which requires dismantling the valve body during maintenance, and contacting the pneumatic ball valve manufacturer to replace the sealing gasket and add lubricating oil to the rotating part to make it work normally.
