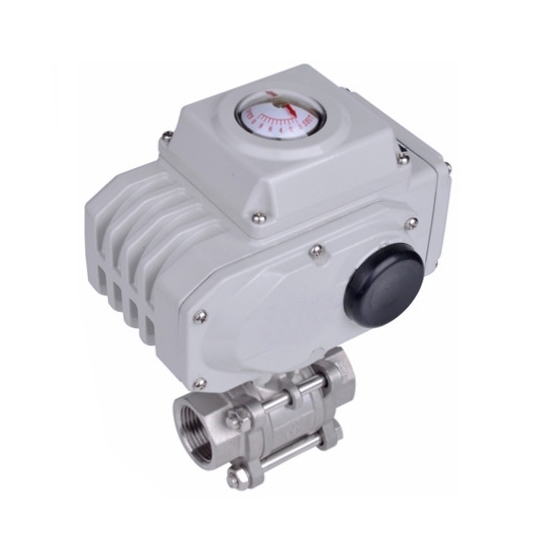

1" Electric Actuated Ball Valve, 2 Way/ 3 Way

Low price 2 way, 3 way, 1 inch electric actuated ball valve with DN25 port and PTFE seat. Ball valve type of threaded, flanged and PVC true union available. The electric actuator works at 110V AC, 220V AC, 380V AC, and 24V DC power supply, high performance and reliable.

SKU: CCHN-EBV-25B

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Electric actuated ball valve is composed of a stainless steel ball valve and an aluminum alloy electric actuator. It is high performance and reliable for controlling air, water, oil, gas, liquid, etc.

Specification

Ball Valve	Model	CCHN-EBV-25B
	Port Size	1 inch (DN25, 25mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	CCHN-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Body Dimension (Unit: mm)

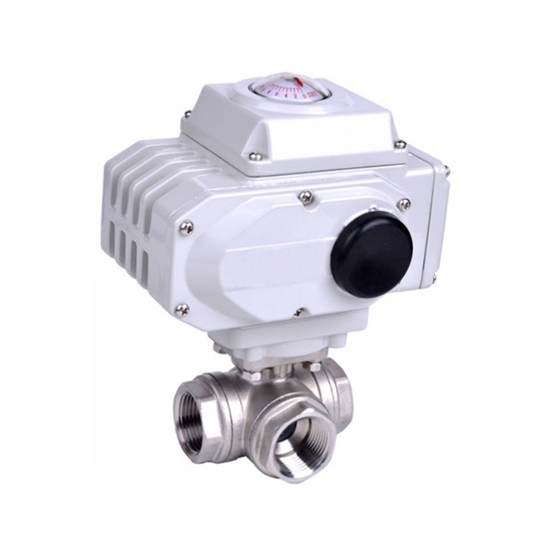

2 way/ 3 way, stainless steel, threaded type

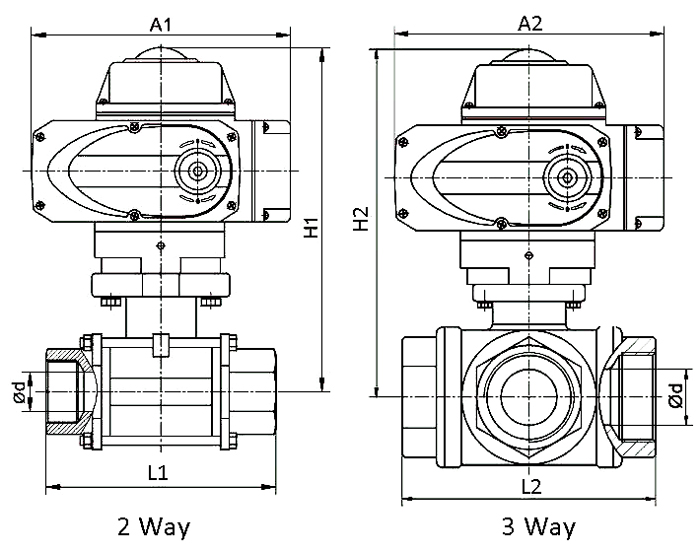

2 way 3 way stainless steel threaded type electric ball valve dimension

φd	L1	A1	A2	H1	L2	H2
25	90	160	160	173	86	164

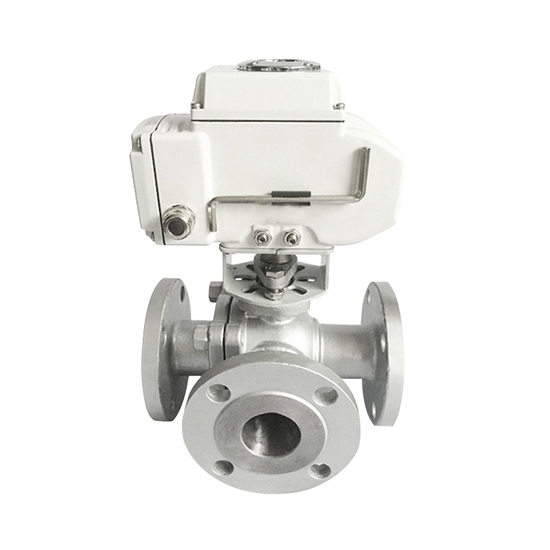

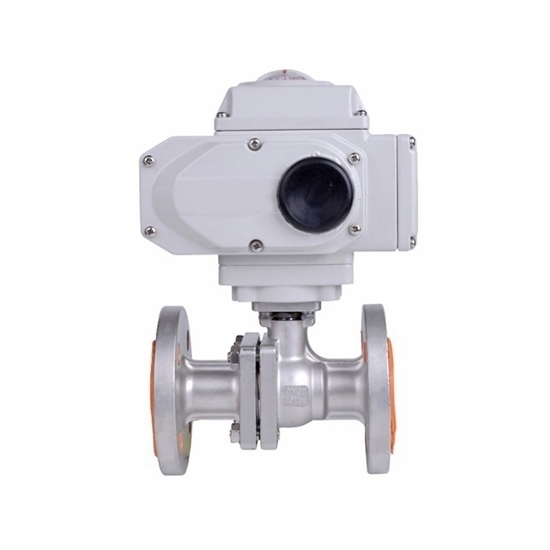

2 way/ 3 way stainless steel, flanged type

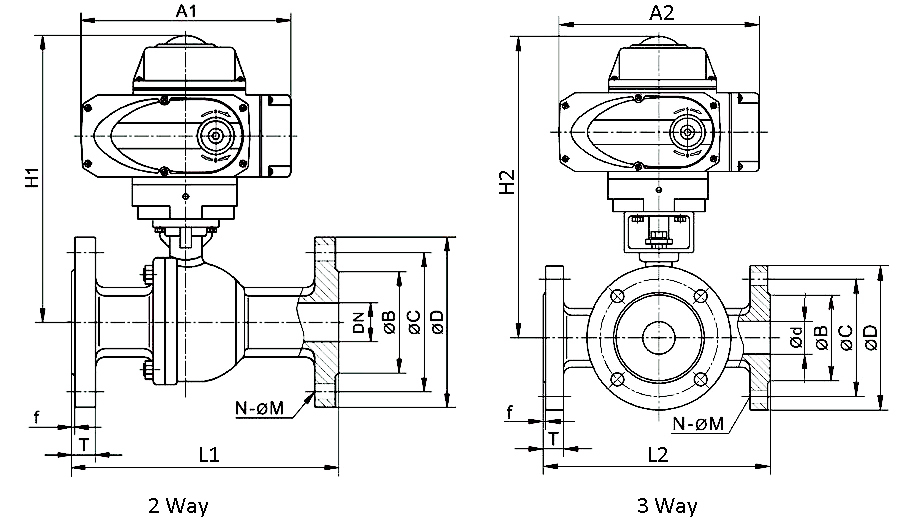

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
25	150	16	2	115	65	85	188	188	160	160	180	4-φ14

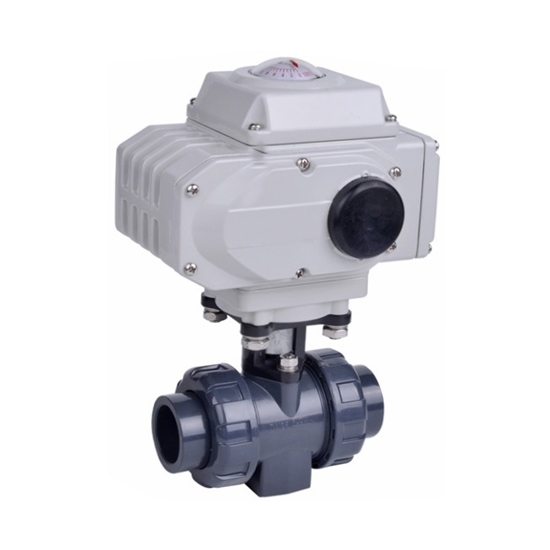

2 way, PVC true union type

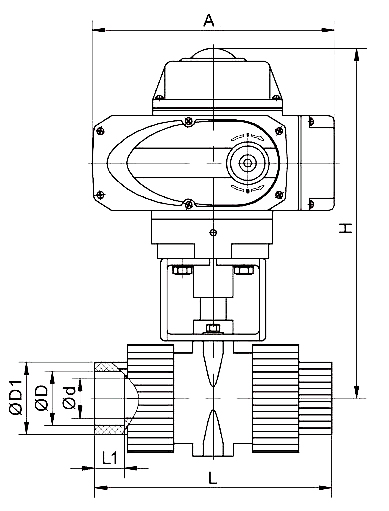

2 way PVC pneumatic actuated ball valve dimension

DN	D	D1	d	L1	A	H
25	33	44	23	20	160	216

Three Way Ball Valve Flow Pattern

T Type:

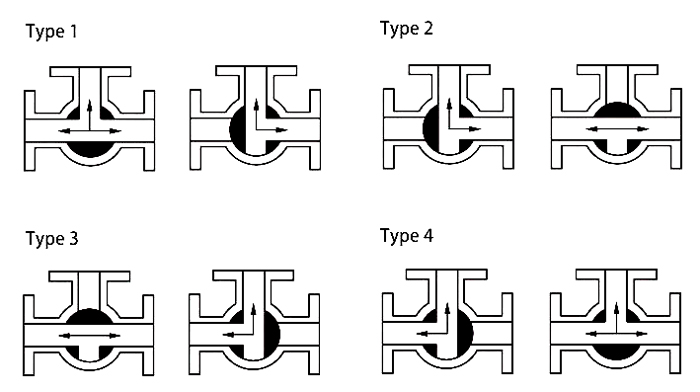

3 way pneumatic ball valve flow patterns t port

L Type:

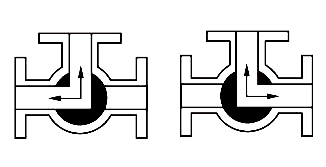

3 way pneumatic ball valve flow patterns l port

Tips: What is an electric actuated ball valve?

The electric actuated ball valve is composed of only a few parts, small size, light weight, easy to operate, and can be opened and closed quickly just by rotating 90°. And it also has good flow regulation and sealing characteristics. Electric actuated ball valves are not only widely used in general industries such as petroleum, gas, chemical, and water treatment, but also in the cooling water system of thermal power plants.
