Potentiometer Angle Sensor with Bracket, Angular Position Sensor

CCHN angular position sensor has outstanding advantages in performance and practicality. In terms of accuracy, it features infinitely small resolution (analog output) and a linearity of ±0.1%, enabling precise capture of position changes. In terms of reliability, it is equipped with a precision ball bearing, boasting a mechanical lifespan of up to 20 million rotations, a rotational torque of <1mN·m, and an IP40 protection rating. In terms of adaptability, optional steel simple brackets and aluminum alloy L-shaped brackets are available, allowing flexible installation. Potentiometer angle sensor is particularly suitable for high-precision intelligent control scenarios such as second-order inverted pendulums and balancing robots, and it is an industrial angle sensor that combines technical strength and practical value.

Specification

Features

• Exceptional Precision: The internal resistor uses polymer conductive plastic synthesized from resin and conductive substances, with infinitely small resolution and a linearity of ±0.1%, which can accurately follow position changes.
• Reliable Service Life and Performance: CCHN angle sensor built-in precision ball bearings, mechanical service life of 20 million revolutions, rotational torque <1mN·m, stable and durable hard aluminum alloy housing, protection class IP40.
• Strong Adaptability: Optional steel simple brackets and aluminum alloy L-shaped brackets, ensuring firm installation and high expandability.
• Wide Applications: Potential angle sensor meets the needs of high-precision intelligent control scenarios such as second-order inverted pendulums and balancing robots, compatible with devices like STM32 and Arduino (with flexible power supply voltage).

Dimensions (Unit: mm)

• Potentiometer Angle Sensor

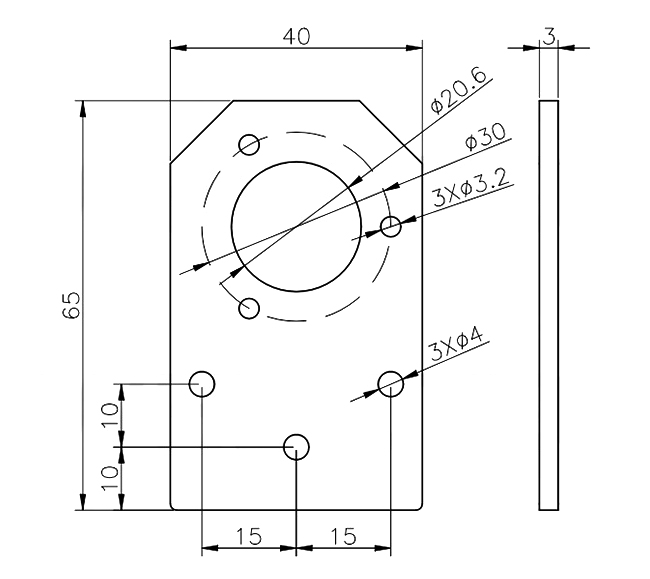

• Simple Bracket

• L-Shaped Bracket

Detail

Tips: How to Selecting VCC Supply Voltage of Potentiometer Angle Sensor?
