1-1/2" Manual Angle Seat Valve

DN40 angle seat valve allows for quick and smooth operation, promoting ease of use in diverse settings. Its compact and space-saving structure makes it suitable for installations where space is limited.

Specification

• Model: CCHN-MANGLE-DN40
• Thread Port Size: 1-1/2 inch (DN40)
• Working Medium: Air, Water, Oil, Gas, Steam
• Body Material: 304 Stainless Steel
• Driving Mode: Manual
• Nominal Pressure: 1.6Mpa
• Connection type: Internal thread

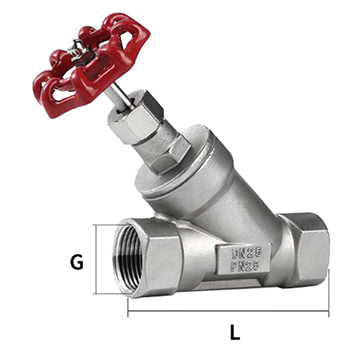

Manual Angle Seat Valve Dimension

• G: 1-1/2 inch (DN40)
• L: 125mm

Tips: How to install a manual angle seat valve?

1. Prepare the Tools: Gather the necessary tools and materials, including the valve, pipe fittings, wrenches, thread sealant, and Teflon tape.
2. Shut off the System: Ensure that the fluid or gas supply to the pipeline is turned off to prevent any accidents.
3. Position the Angle Seat Valve: Determine the appropriate location for the valve on the pipeline. Ensure it is oriented correctly according to flow direction.
4. Pipe Connection: Use pipe wrenches to connect the valve to the pipeline, using thread sealant or Teflon tape on the threads to create a leak-free connection.
5. Tighten Connections: Make sure all connections are securely tightened to the manufacturer's specifications.
6. Test for Leaks: Turn on the system and test for any leaks around the valve and connections. If there are any leaks, re-tighten the fittings.
7. Operational Testing: Test the valve by operating it to control the flow of fluid or gas. Ensure it functions correctly.
8. Secure the Valve: Once you confirm the valve is functioning properly, secure it in place.
9. Resume System Operation: Finally, open the system to resume regular operation.
