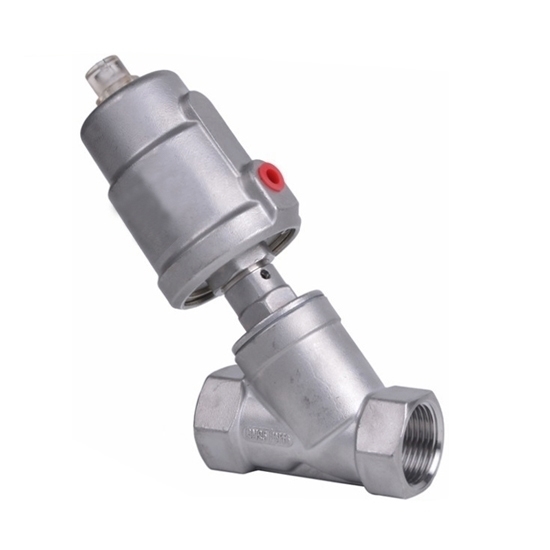

2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

DN50 pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle slanted seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

• Model: CCHN-KLJZF-DN50
• Pipe Thread Type: 2 inch (DN50), ZG, G or NPT
• Working Medium: Air, Water, Oil, Gas, Steam
• Pneumatic Fitting Type: ZG 1/4"
• Medium Temperature: -10℃~+180℃
• Ambient Temperature: -10℃~+60℃
• Nominal Pressure: 1.6MPa
• Air Pressure: 0.4~0.8MPa
• Valve Body Material: Stainless Steel (SS304, SS316)
• Sealing Material: PTFE

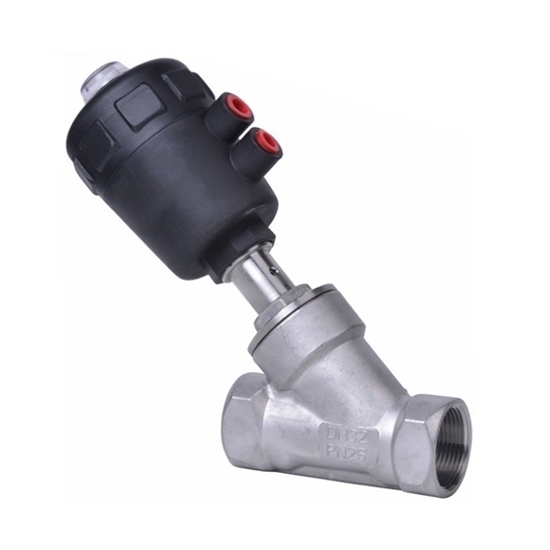

• Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

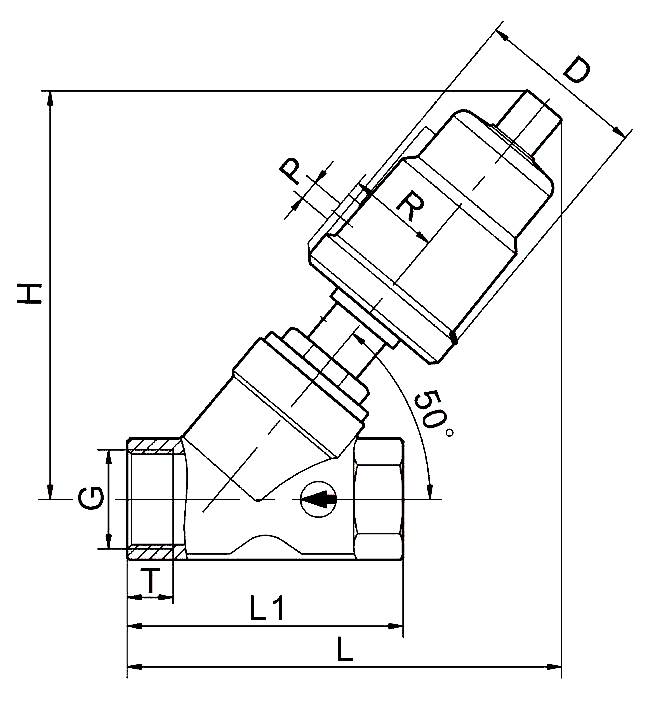

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Tips: Pneumatic angle seat valve working principle

• Single-acting working principle: When no compressed air is input to the cylinder, the angle seat valve is in the normally closed or normally open position due to the spring force. When compressed air enters the cylinder, the pressure of the air source pushes the piston and overcomes the spring force to move, thereby causing the valve to open or close.
• Double-acting working principle: when the compressed air enters the cylinder, it pushes the piston from bottom to top to open the angle seat valve, and vice versa, the compressed air pushes the piston from top to bottom to close the valve.
