1-1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

1-1/2 inch thread port size pneumatic angle seat valve for sale at factory price. It is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat control valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

• Model: CCHN-KLJZF-DN40
• Pipe Thread Type: 1-1/2 inch (DN40), ZG, G or NPT
• Working Medium: Air, Water, Oil, Gas, Steam
• Pneumatic Fitting Type: ZG 1/4"
• Medium Temperature: -10℃~+180℃
• Ambient Temperature: -10℃~+60℃
• Nominal Pressure: 1.6MPa
• Air Pressure: 0.4~0.8MPa
• Valve Body Material: Stainless Steel (SS304, SS316)
• Sealing Material: PTFE

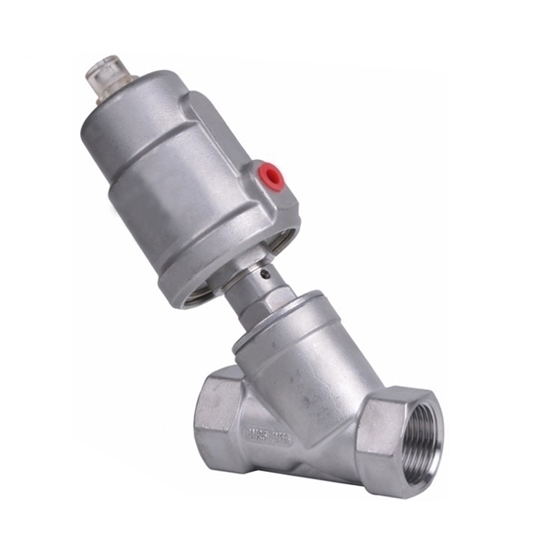

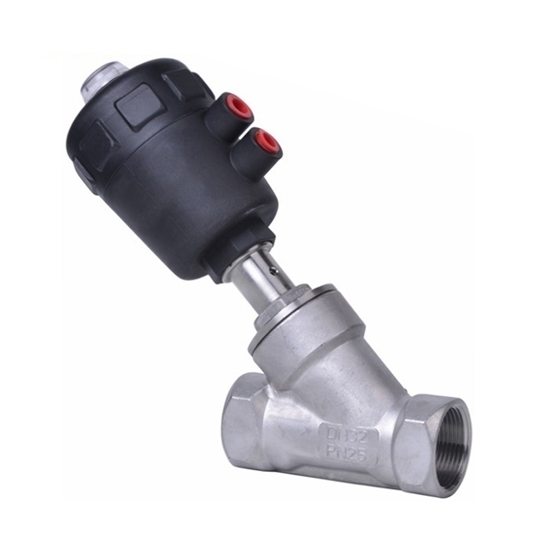

• Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Tips for installing pneumatic angle seat valve

• Pipes must be clean and free of contamination.
• Install as desired, but preferably with the actuator facing up. Pay attention to the flow direction.
• When connecting the angle seat valve, pay attention to the alignment of the pipeline, and remove the actuator only when the user has special requirements.
• Shut off the fluid and control air supply and reduce the pressure in the piping system before opening or servicing this angle seat valve.
