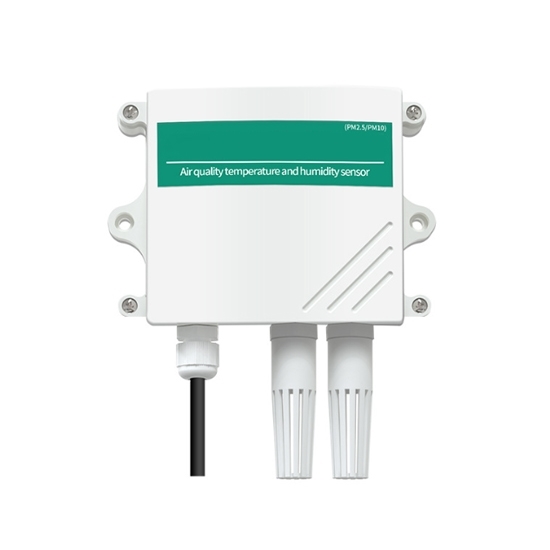

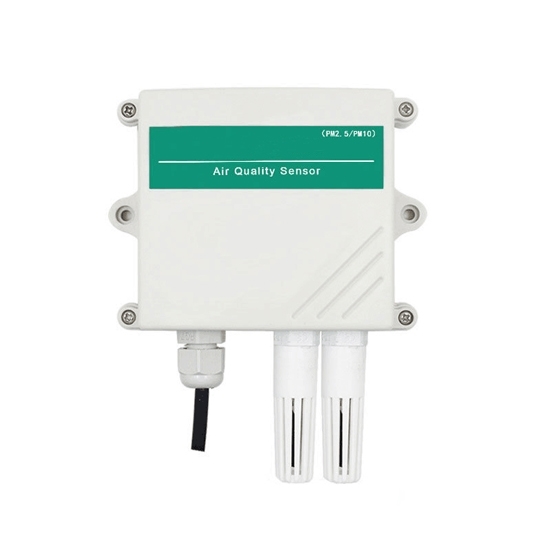

Industrial Air Quality Sensor, Temp/Humidity/PM1.0/PM2.5/PM10

Industrial Air Quality Sensor, Temp/Humidity/PM1.0/PM2.5/PM10

Higher quality industrial air quality sensor for sale. The air particle sensor can test -40~+80℃ temperature, 0%RH-100%RH humidity, 0~1000μg/m3 PM2.5, 0~1000μg/m3 PM10, 0~1000μg/m3 PM1.0, and has 1μg/m3 resolution, ±3%FS (@0~100μg/m3, 25℃, 50%RH) accuracy. Industrial grade high precision air quality sensor has optional output signal RS485, 4-20mA, 0-5V, 0-10V, can be used for outdoor weather stations, dust monitoring, libraries, archives, and plants.

SKU: CCHN-AQS-IAQS

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This air quality sensor measures temperature (-40~+80°C), humidity (0%RH-100%RH), and particulate matter (PM2.5, PM10, PM1.0) with a range of 0-1000μg/m³ and a resolution of 1μg/m³. It offers an accuracy of ±3%FS (@0-100μg/m³, 25°C, 50%RH).

Specification

Power Supply (DC)	10~30V DC
Power Consumption	0.5W
PM2.5 Measurement Range	0~1000μg/m³
PM10 Measurement Range	0~1000μg/m³
PM1.0 Measurement Range	0~1000μg/m³
Temperature Measurement Range	-40~+80℃
Humidity Measurement Range	0%RH-100%RH
Operating Humidity	0% RH~95% RH (non-condensing)
Transmitter Circuit Operating Environment	-20°C~+60°C
Output Signal	RS485, 4-20mA, 0-5V, 0-10V optional (4G/wifi contact customer service)
Communication Interface	RS485 (ModBus) Protocol
Baud Rate	2400, 4800, 9600 (default)
Data Length	8 bits
Parity Check Mode	None
Stop Bits	1
Default ModBus Address	1
Parameter Configuration	Configured via provided software through RS485 interface
Resolution	PM2.5/PM10/PM1.0: 1 µg/m³
	Temperature: 0.1°C
	Humidity: 0.1% RH
Accuracy (default)	PM2.5: ±3%FS(@0~100μg/m3, 25℃, 50%RH)
Accuracy (default)	Temperature: ±0.5℃(25℃); Humidity: ±3%RH(60%RH, 25℃)

Feature

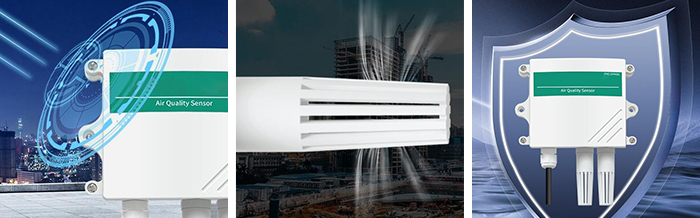

Industrial air quality sensor feature

Automatic Calibration with High Consistency: Air quality sensor equipped with dual-frequency data collection and automatic calibration technology, ensuring high consistency of up to ±10%.
Advanced Laser Dust Reduction Technology: Utilizes cutting-edge laser dust reduction technology to ensure long-term stable data without drift.
Fast Response and High Accuracy: Air quality sensor uses a series sampling probe with fast response speed and higher accuracy for better measurement precision.
Multiple Signal Outputs: Industrial air quality sensor supports multiple output signals such as RS485, 4-20mA, 0-5V, 0-10V, WiFi, and 4G to meet different monitoring requirements in various environments.
High Protection for Outdoor Use: Designed with high protection for outdoor use, resistant to dust, rain, and snow, making it suitable for monitoring in harsh weather conditions.

Dimension

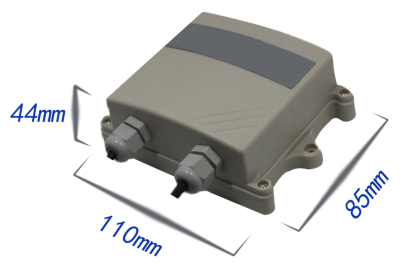

Industrial air quality sensor size

Wiring Method

Gray	Power Supply (+10~30V DC)
Black	Power Supply (Negative)
Yellow	Communication (RS485-A)
Blue	Communication (RS485-B)

Application

Industrial air quality sensor application

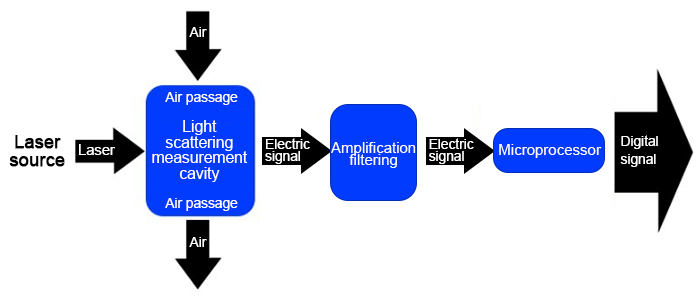

Tips: What is the laser scattering principle for air quality sensors?

The laser light is scattered on the suspended particles in the air, and the scattered light is collected at a specific angle to obtain the curve of the scattered light intensity with time. The microprocessor then uses an algorithm based on Mie theory to derive the equivalent particle size of the particulate matter and the number of particles of different sizes per unit volume.

Laser scattering principle
