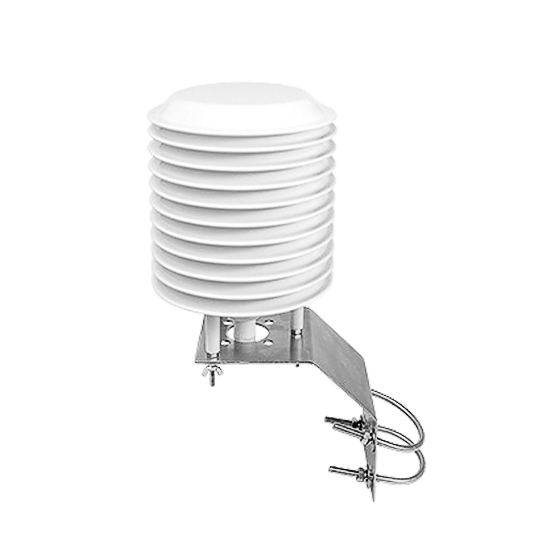

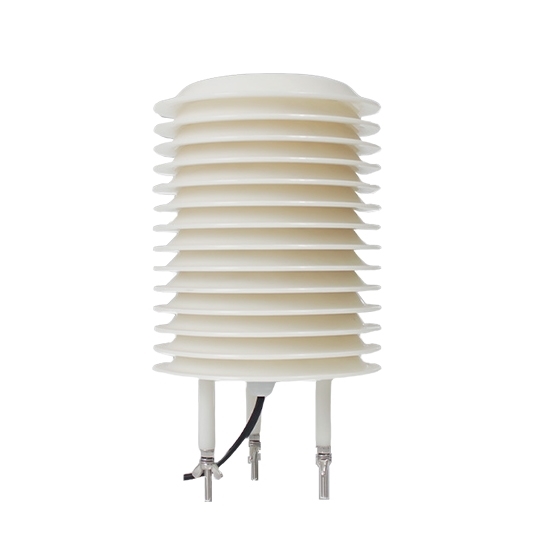

Outdoor Air Quality Sensor with Stand, PM1.0/PM2.5/PM10

Outdoor Air Quality Sensor with Stand, PM1.0/PM2.5/PM10

This outdoor air quality sensor delivers precise monitoring of PM1.0, PM2.5, and PM10. Designed for high performance, it supports 4-20mA, 0-10V, or RS485 output with ±3% FS accuracy. Power consumption under 50mA, and a quick 3-minute warm-up time, the sensor is ready for fast deployment. A stand is included for stable installation, making this particulate matter sensor a smart choice for outdoor use.

SKU: CCHN-AQS-QPM

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low cost outdoor PM2.5 sensor features a stable stand for permanent mounting. Constructed with ABS housing for harsh environment durability, the air particle sensor operates across -20°C to +50°C with a 0-1000μg/m³ measurement range.

Specification

Model	CCHN-RK300-02
Measurement Parameter	PM1.0, PM2.5, PM10
Range	0-1000 µg/m³
Accuracy	±3% FS @25°C
Power Supply	5 VDC, 12-24 VDC
Output	4-20 mA, 0-5 V, 0-10 V, RS485 (Optional)
Power Consumption	< 50 mA @ 24V (4-20 mA output)
Warm-up Time	3 min
Response Time	< 90s
Temperature Drift	≤ 0.2% FS / °C
Stability	< ±2% FS
Repeatability	< ±1% FS
Operating Temperature	-20°C to +50°C @ 15-80% RH
Storage Environment	-40°C to 60°C @ 20%-90% RH
Housing Material	ABS
Default Cable Length	2m

Features

Precision measurement: Outdoor air pollution sensor detects particles as small as 1.0μm with high accuracy.
Durable construction: ABS housing offers UV resistance, high heat resistance, and flame retardancy.
Wide applicability: PM1.0/PM2.5/PM10 air quality sensor works reliably in harsh environments.
Strong anti-interference: Stable signal output ensures consistent performance in complex conditions.
Extended service life: Robust design and quality materials guarantee long-term operation.
Advanced detection capability: Dust particle sensor supports multiple measurement parameters for various needs.

Dimension

Outdoor air quality sensor dimension

Details

Outdoor air quality sensor details

Application

Outdoor air quality sensor application

Tips: Is professional installation required, or can I set up the outdoor air quality sensor myself?

The outdoor air quality sensor supports DIY installation with its included mounting stand and simple wiring. However, for complex environments or optimal placement, professional installation is recommended to ensure best performance. About 30% of commercial clients choose professional services for their first deployment.
