Air Quality Monitor, CO/ CO2/ Temperature/ Humidity

Air Quality Monitor, CO/ CO2/ Temperature/ Humidity

Air quality monitor used for detecting CO, CO2, voltage, temperature as well as humidity, with accurate CO, CO2 concentration. Air quality sensor installed with carbon monoxide, carbon dioxide exceeding the standard display and advanced NDIR infrared sensor. Resolution 1PPM and Input Voltage DC 5V/ 1A. Indoor air quality monitor usually apply in private cars, taxis, trucks, school buses, online car-hailing cars, official cars.

SKU: CCHN-AIR-PT04

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air quality sensor voltmeter achieves real-time monitoring, long-term alarm for exceeding the standard, and protects life safety, monitoring carbon monoxide, carbon dioxide, temperature, humidity, voltage. Appearance color can be customized.

Specification

Product Model	CCHN-PT04
Color	White
CO2 Measurement Range	400-5000 ppm
Resolution	1 ppm
CO2 Measurement Accuracy	± 50 ppm or ± 5% of reading
CO Measurement Range	0-1000 ppm
CO Measurement Accuracy	± 10 ppm or ± 5% of reading
Temperature Measurement Range	-10°C~60℃, ± 2°C
Humidity Measurement Range	5%~95%, ± 5%
Pressure Range	300-1100 hPa
Relative Accuracy ( 950-1050hPa@ 25℃）	± 0.12 hPa
Absolute Accuracy (950-1050hPa@0-40℃)	± 1 hPa
Altitude	9000-500m (Above/Below sea level)
Sound Level	85 dB (3M)
Working Temperature	0°C-50℃
Working Humidity	0-95% (non-condensing)
Power	Type C USB 5V 1A
Dimension	1109038 mm
Weight	0.65 (kg)

Details

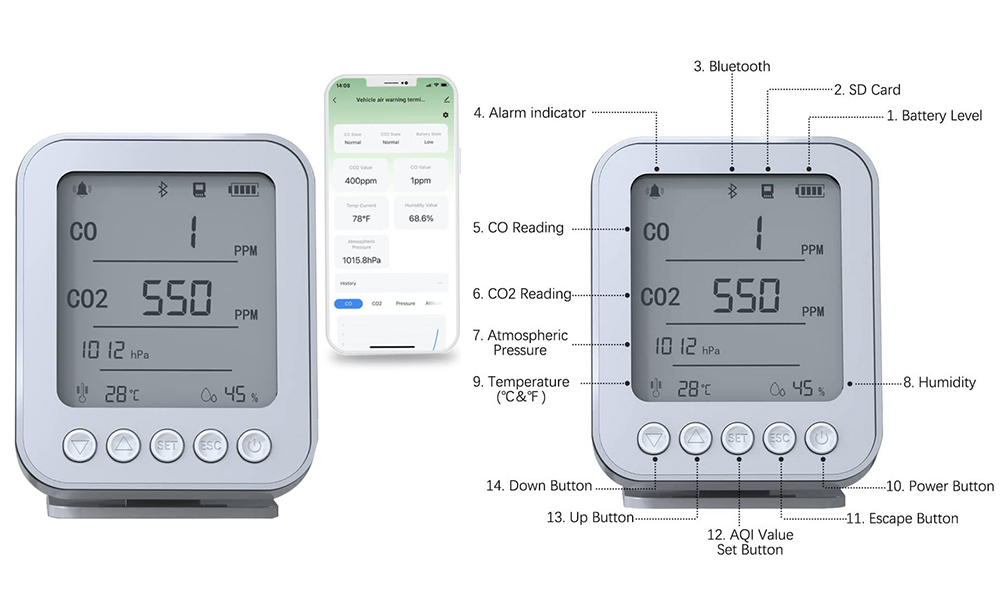

Air quality monitor

Feature

Air quality sensor with accurate CO, CO2 concentration detection and advanced NDIR infrared sensor.

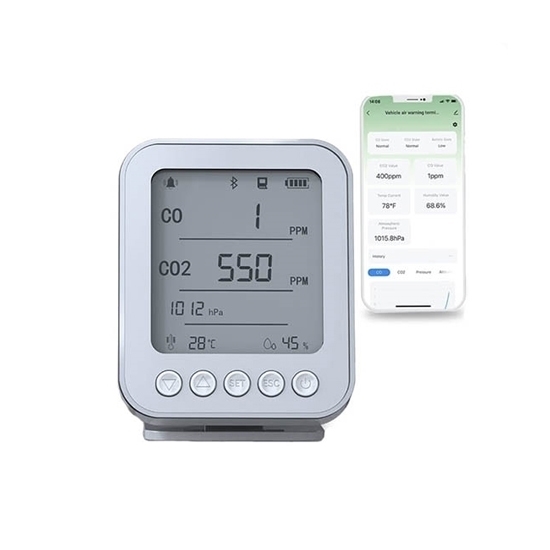

Wifi remote connection, stable data transmission, with CO and CO2 exceeding the standard display.
When the safety value is exceeded (CO is 25ppm, CO2 is 1000ppm), the screen displays an alarm and gives a warning to remind the car-driver to open the window for ventilation.
Indoor air quality monitor High altitude exploration, long service life more than five years.
Carbon monoxide and carbon dioxide are monitored in real-time as well as temperature and humidity display and shockproof function.
Air quality tester having display of pressure and altitude values. Prevent heatstroke and fainting during long-distance driving.
Portable air quality monitor with small size and light weight, easy to install and carry outdoors.

Notice

If you need an air quality tester with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
We also provide other air quality sensors that detect CO, CO2, voltage, temperature and humidity. If you have any questions, please feel free to contact us.

Tips: Why should we apply a CO and CO2 air quality monitor?

Air quality sensor’ NDIR is used to monitor CO, CO2, temperature, humidity, pressure and altitude in the vehicle.
Air quality tester provides effective technical support for the monitoring, early warning and regulation of the air in various types of vehicles, which can detect the crisis in time and provide safe driving guarantee for the vehicle users.
Achieving real-time monitoring, long-term alarm for exceeding the standard, and protects life safety.
