Cable Drag Chain, 60 x 100mm

Plastic cable drag chain inner size 60 x 60mm, 60 x 100mm, 60 x 200mm and 60 x 250mm to choose from, cable carrier length can be customized from 1 meter to 10 meters. Smooth movement and low noise.

SKU: CCHN-CDC-H60

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

60 x 100mm black cable drag chain for sale, inner height 60mm, inner width 100mm, cable drag chain length can be customized. Widely used in CNC machine tools, electronic equipment, counting devices and other equipment.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	CCHN-CDC-H6060	CCHN-CDC-H60100	CCHN-CDC-H60150	CCHN-CDC-H60200	CCHN-CDC-H60250
Inner Height	60	60	60	60	60
Inner Width	60	100	150	200	250
Outer Height	80	80	80	80	80
Outer Width	91	131	181	231	281
Bending Radius ®	125mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm
Open Mode	Bridge type	Bridge closed	Bridge closed	Bridge type	Bridge type
Pitch Distance	66
Bridge Weight	2.65kg	2.81kg	2.98kg	3.26kg	3.39kg
Closed Weight	/	3.43kg	3.82kg	4.45kg	/

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 91mm, excluding the number of joints per meter= 11, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	125	150	200	250	300	400	500
H	330	380	480	580	680	880	1080
D	256	281	331	381	431	531	631
K	610	688	845	1002	1159	1473	1787

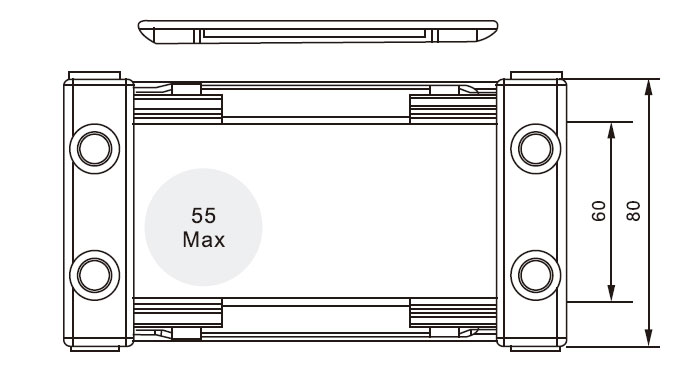

Drag chain 60 x 100mm dimension

Dimension	CCHN-CDC-H6060	CCHN-CDC-H60100	CCHN-CDC-H60150	CCHN-CDC-H60200	CCHN-CDC-H60250
A	30	30	30	30	30
B	42	42	42	42	42
C	82	122	177	222	272
D	97	137	187	237	287
E	16	16	16	16	16
Aperture (φ)	8	8	8	8	8

Drag chain 40 x 100mm installation

Tips: What are drag chains for semi trucks?

Drag chains for semi trucks, also known as tire chains or snow chains, are devices that are placed over the tires of the truck to provide additional traction on snowy or icy roads. They are designed to improve the grip and handling of the truck, allowing it to move safely and efficiently through difficult driving conditions.

Drag chains typically consist of a series of interconnected chains that are wrapped around the tire and secured in place. They may also include additional components, such as cross links, tensioners, and cleats, to further enhance their effectiveness.

The use of drag chains is typically regulated by local laws and regulations, and they may be required or recommended under certain weather or road conditions. It's important to properly install and use drag chains according to manufacturer instructions and any applicable regulations to ensure safe and effective use.
