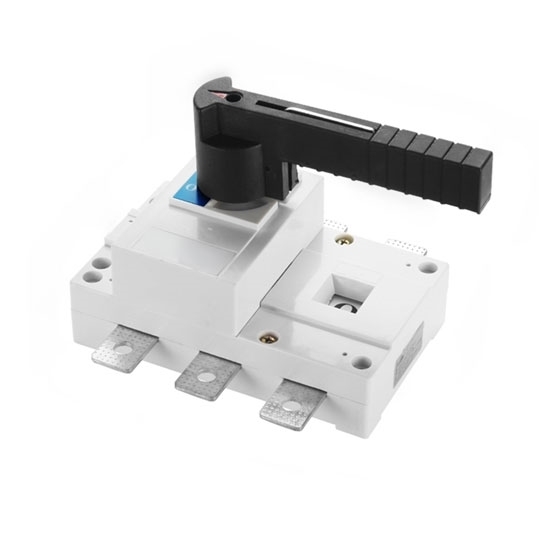

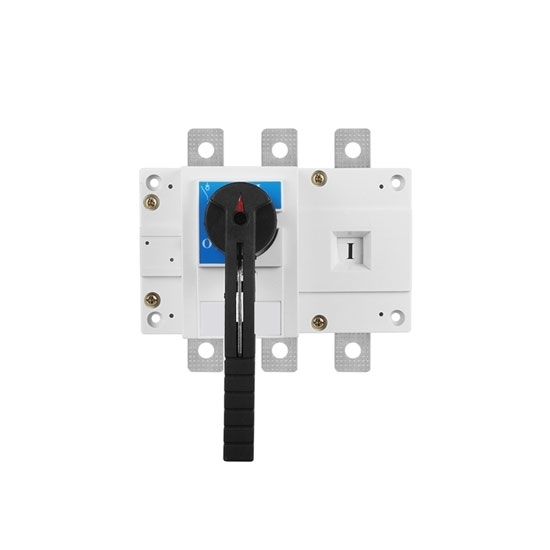

125 Amps Isolator Switch, 3 Pole/ 4 Pole

125 Amps Isolator Switch, 3 Pole/ 4 Pole

Affordable price isolator switch for sale, 3 pole or 4 pole, load isolating switch is beautiful in appearance, novel, concise, and small in size. It is an ideal choice among similar products.

SKU: CCHN-IS-HGL125A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This lightweight load isolator disconnect switch, it ranges from 3 Pole and 4 Pole. When the voltage is at 380V, the motor power is 63 kW, voltage is at 660V, motor power is 75 kW, and rated current is 125A. It can be used for a long time and is also affordable.

125 Isolator Switch Specifications

Basics	Model			CCHNHGL-125A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	1.2kg
Technical Parameters			4 Pole	1.4kg
	Rated current			125A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			8
	Rated Working current le	380V	AC-21B	125A
			AC-22B	125A
			AC-23B	125A
	Motor power P(380V)kW		380V	63 kW
			660V	75 kW
	Rated short-time withstand current lcw（kA rms)1.0s			6
	Rated breaking capability Icn (Arms) AC23 380VA			1000
	Rated making capacity Icm(Arms) AC23 380V			1250
	Rated short-current making capacity Icm'(Kapeak value)			9.2
	Mechanical durability (number of cyclic operation)			1400
	Electrical Curability 380V			200
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1500
			COSφ=0.65AC22	1000
			COSφ=0.35AC23	500
Working Environment	Moment of operation			6.5 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

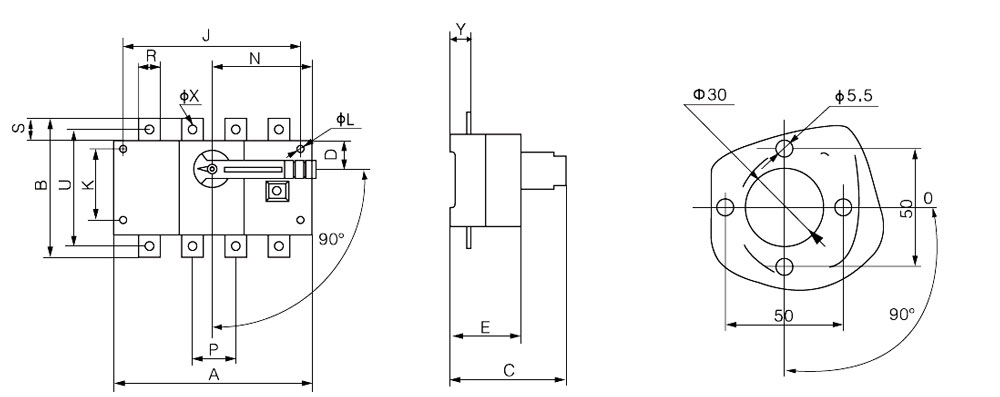

Dimension

Current	A	B	C	D	D1	E	ΦL	J	K	N	P	R	S	U	ΦX	Y	F	H
125A/3P	230	240	179	50	137	115	7	210	140	135	65	32	40	206	11	37	95	20
125A/4P	290	240	179	520	137	114	7	210	140	135	65	32	40	206	11	37	95	20

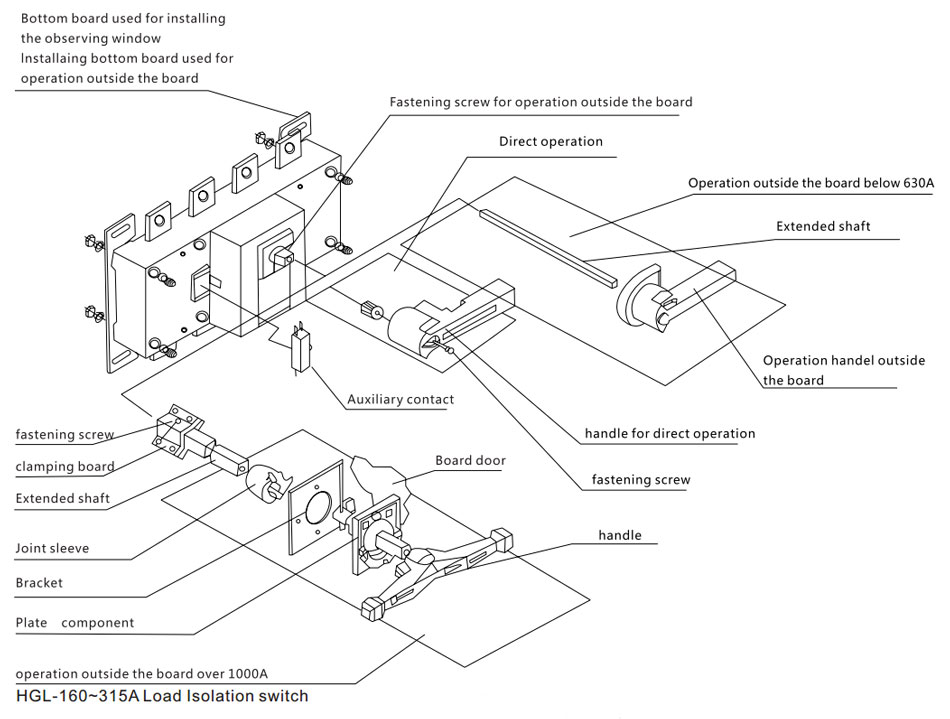

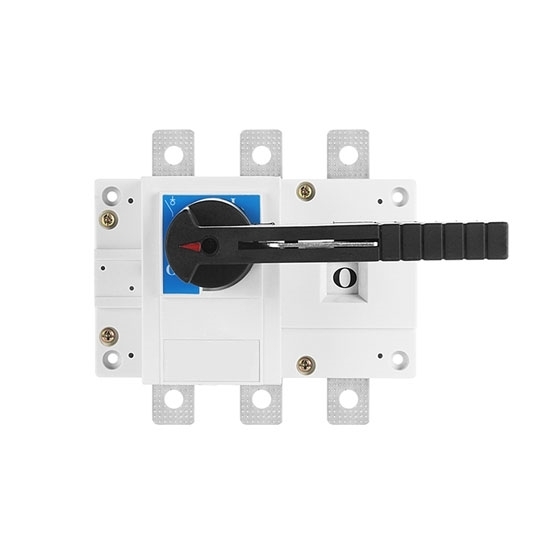

3 Pole 4 Pole Isolator Switch Operation Mode

63 amps load isolator disconnect switch
Isolator Switch Features

The acceleration mechanism that is released instantaneously by the spring accumulator achieves fast switching or breaking (13.8 m/s), which is independent of the operating handle speed and greatly improves the arc extinguishing capability.
The outer shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonation resistance and impact resistance.
Parallel double breaks have self-cleaning action.
All contacts have two separate contact faces. The isolation distance is large. When the position is “0”, the handle can be locked with three locks at the same time, which can reliably avoid misoperation.

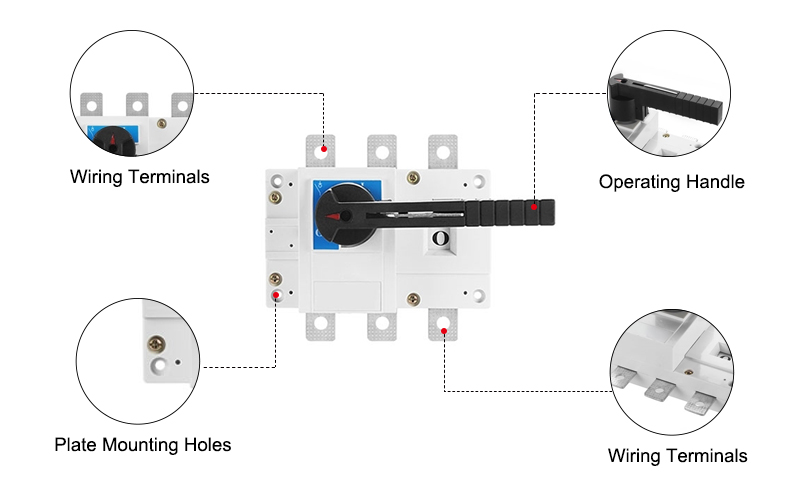

Details
