1 hp Small Air Compressor, 115 PSI, 2 Gallon

2 Gal. tank capacity portable air compressor offers 8 Bar 115 PSI maximum pressure and air delivery 108L/Min, 3.8 CFM. 1 hp (0.75 kW) direct drive induction motor with thermal overload protection, professional-grade, quiet air compressor for long life.

SKU: CCHN-COMPR-001

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1 hp (0.75 kW) Air Compressor Features

2 gallon tank capacity
108L/Min air displacement
Powerful 1 horsepower motor produces 3.8 CFM at 115 PSI for increased productivity
Portable with small size, low cost, oil save, and energy save.

1 hp (750W) Air Compressor Description

Model	ZB-00368B
Size	50 (L)19 (W)51 (H) CM
Type of the Air Compressor	Direct drive
Tank Capacity	2 Gal. (Can be customized)
Motor Power	1 hp, 0.75 kW (Can be customized)
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Air Delivery	108L/Min, 3.8 CFM
Maximum Pressure	8 Bar, 115 PSI
maximum Speed	2880 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	with 80DB
Warranty	1 Year
Cooling Method	Air Cooling
Weight	22 kg

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

2hp air compressor application

Packing & Delivery

1 hp air compressor packing and delivery

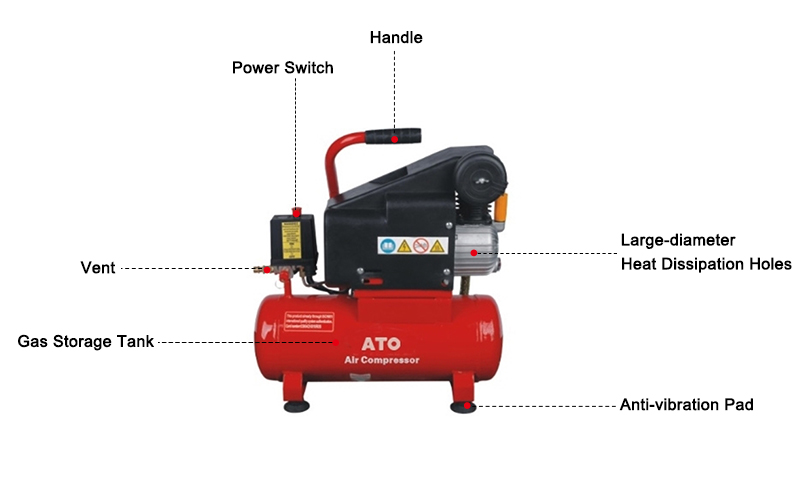

Details

Tips: What is a piston-type small air compressor?

The piston small compressor is the compressor which changes its internal volume by a group or several groups of cylinder or the piston with reciprocating motion. It consists of the compressor main engine, cooling system, regulating system, lubricating system, relief valve, electric motor and control equipment. The compressor and the motor are fastened to the machine base with bolts, and the base is fixed on the foundation by the foundation bolt.
