15 hp 74 Gal. 430 PSI Belt Driven Air Compressor

The 15 hp (11 kW) air compressor is belt driven, 74 gallons (280 litres) tank capacity with wheels, maximum pressure up to 30 Bar, 430 PSI. It also has an air delivery rating of 1000 Litres/min, making it ideal for almost any work including fastening, cleaning, mechanical work and painting.

SKU: CCHN-COMPR-015

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

15 hp 430 PSI Air Compressor Features

15 horsepower (11 kW) electric belt drive motor
Has an air delivery of 35.3 CFM at 430 PSI
120V AC power voltage at 60Hz frequency
1 year quality guarantee included
74 Gal. receiver tank and three-cylinder pump

Description

Model	ZB-1030
Size	176(L)60 (W)125(H) CM
Type of the Air Compressor	Belt driven
Tank Capacity	74 Gal. (Can be customized)
Motor Power	15 hp, 11 kW (Can be customized)
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Cylinder	2-stage: 125x2, 70x1
Air Delivery	1000L/Min, 35.3 CFM
Maximum Pressure	30 Bar, 430 PSI
maximum Speed	700 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	with 80DB
Warranty	1 Year
Cooling Method	Air Cooling

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

belt driven air compressor application

Packing & Delivery

3 hp belt driven air compressor packing and delivery

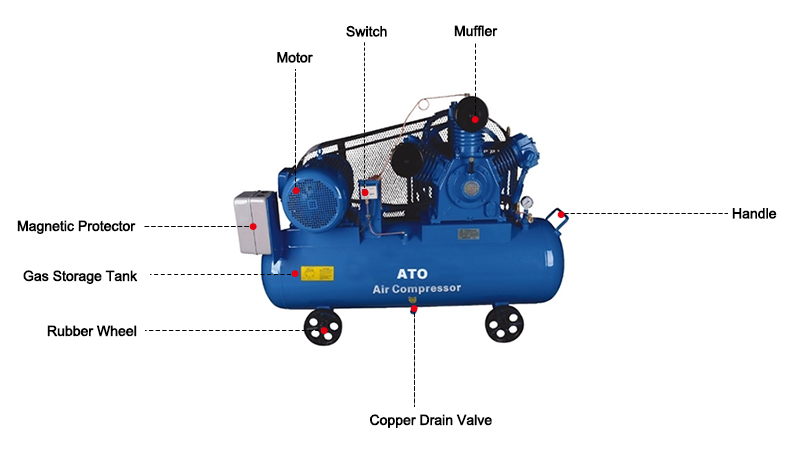

Details

8 tips for the use of air compressor

When the air compressor is used for cooling, it is necessary to clean up the impurity mixture in time, at least every two hours.
The cooler and the water jacket should be placed in water before using air compressor.
The water jacket needs to be cooled completely before the inlet of water, otherwise the cylinder may be damaged.
We must use open-way drainage in drainage and drainage temperature should not exceed 10℃-15℃ compared with water inlet temperature.
In order to avoid the explosion caused by the overload of pressure, the safety valve must be installed on the air compressor.
The reducer should be installed in the condition of air pressure reduction.
Air must be guaranteed to be dustless.
Do not use gasoline and other substances in cylinder cleaning and professional coal oil is needed for cleaning.
