3 hp 18 Gal. 115 PSI Belt Driven Air Compressor

2.2 kW (3 hp) air compressor is powerful and portable with a built-in wheel kit and easy carry handle. Using the long life highly efficient, smooth and quiet operating 11.8 CFM, twin cylinder belt drive compressor pump, and the tank capacity of this 115 PSI air compressor is 18 Gal.

SKU: CCHN-COMPR-003BD

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap small 3-horsepower (2200W) air compressor has a large 11.8 CFM displacement, 120V AC power voltage and an impressive 18-gallon (70 litres) capacity stationary air receiver. The air compressor works up to a maximum working pressure of 150 PSI and is ideal for operating most workshop air tools as well as paint spraying.

3 hp 115 PSI Air Compressor Description

Model	VA-70
Size	100 (L)40 (W)78 (H) CM
Type of the Air Compressor	Belt driven
Tank Capacity	18 Gal. (Can be customized)
Motor Power	3 hp, 2.2 kW (Can be customized)
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Cylinder	70x2
Air Delivery	336L/Min, 11.8 CFM
Maximum Pressure	8 Bar, 115 PSI
maximum Speed	1100 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	80dB
Warranty	1 Year
Cooling Method	Air Cooling

Choose Your Air Compressor

You could choose different stages of 2.2 kW belt-driven air compressor for your requirements.

Model	Gal.	kW	HP	Stage	Cylinder	L/min	RPM	PSI	CFM	Bar	Size (cm)
VA-70	18	2.2	3	1 stage	70x2	336	1100	115	11.8	8	1004078
V-025125	18	2.2	3	2 stage	65x1, 51x1	159	1050	175	5.6	12.5	1003878

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

belt driven air compressor application

Packing & Delivery

3 hp belt driven air compressor packing and delivery

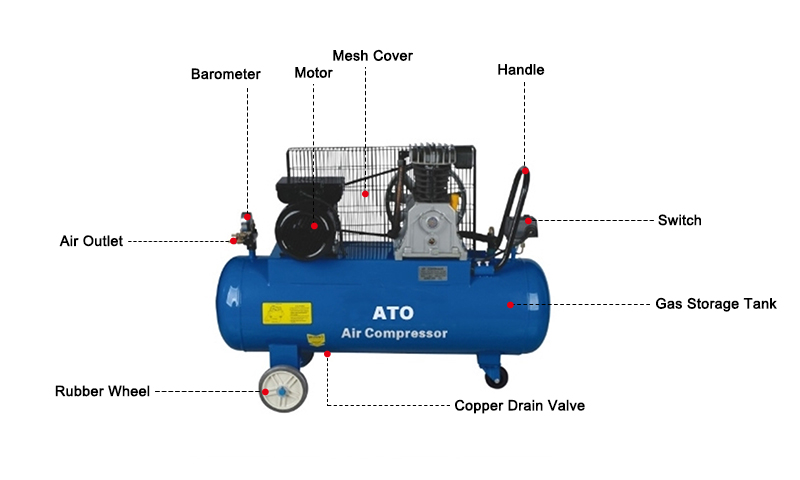

Details

Tips: Advantages of CCHN piston belt-driven air compressor

The provided piston belt-driven air compressor has a wide applicable pressure range and it can reach the required pressure regardless of the flow and size.
It has high thermal efficiency and little unit power consumption.
It has strong adaptability, that is wide discharge range and it is not affected by pressure. It can adapt to the wider pressure range and the requirement of the refrigerating capacity.
CCHN piston belt driven air compressor has strong maintainability.
The belt driven air compressor from CCHN has low requirements for material and mostly adopts ordinary steel materials, which is easy to process and the cost is low.
The device system of the piston small air compressor is simple.
