2 hp Portable Air Compressor, 115 PSI, 4/6/11/13 Gallon

Small portable air compressor features a 2 hp direct drive motor for superior performance. It has an air delivery of 7.1 CFM at 115 PSI, higher PSI equates to longer air tool run times and increased project efficiency while operation at 80 dBA brings less noise to your work environment.

SKU: CCHN-COMPR-002S

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The 2 hp (1500W) mini air compressor benefits from a 4 Gal./6 Gal./11 Gal./13 Gal. capacity and is powerful enough to operate a wide range of general-purpose air tools and machinery.

1.5 kW Air Compressor Features

Adopting advanced world-famous brand components in pneumatic parts, electric parts and operation parts.
115 PSI max provides more usable air for longer tool run time.
Portable with small size, low cost, oil save and energy save.
Include a convenient handle, smooth-rolling wheels and a fully shrouded pump and motor for protection.
Easy to operate and maintain.

13 Gal. Air Compressor Description

Model	MB-50
Size	68 (L)42 (W)70 (H) CM
Type of the Air Compressor	Direct drive
Tank Capacity	13 Gal. (Can be customized)
Motor Power	2 hp, 1.5 kW (Can be customized)
Output Port Size	1/4"
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Air Delivery	200L/Min, 7.1 CFM
Maximum Pressure	8 Bar, 115 PSI
maximum Speed	2880 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	with 80DB
Warranty	1 Year
Cooling Method	Air Cooling

Choose Your Air Compressor

You could choose different types of 2 hp air compressor pumps with different capacities of air tanks.

Model	Gal.	kW	HP	L/min	RPM	PSI	CFM	Bar	Size (cm)
FLSF	4	1.5	2	198	2880	115	7.1	8	394061
BM-24	6	1.5	2	200	2880	115	7.1	8	523262
BM-42	11	1.5	2	200	2880	115	7.1	8	664069
BM-50	13	1.5	2	200	2880	115	7.1	8	684270

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

2hp air compressor application

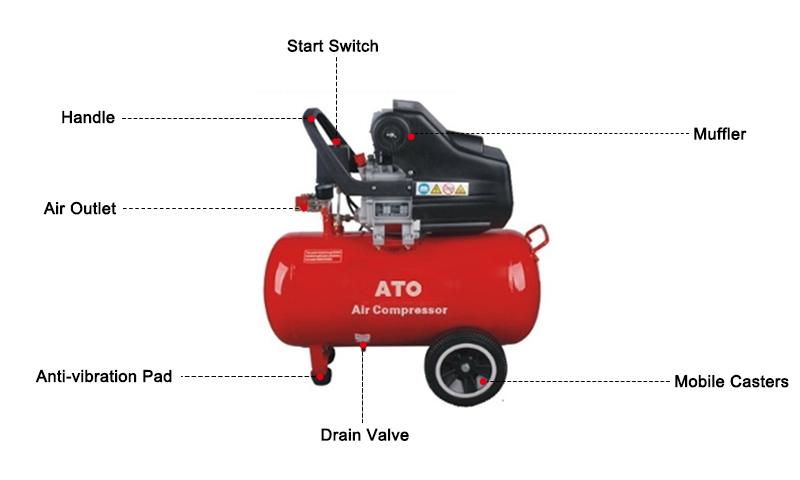

Details

Tips: Preparation before start-up of piston small air compressor

Operation and maintenance of the air compressor must be carried out by qualified personnel.
The air compressor must be sealed off for cleaning before use. Check if there is a corrosion phenomenon on each friction surface. Rust place should be ground bright and clean with oilstone and the friction surface should be coated with lubricating oil after being sealed off.
The air compressor base should meet the specified requirements and the gas pipeline should be cleaned.
Check the fastening degree of motion and static joint part of the air compressor.
Check whether the instrument is qualified and properly installed.
Check and clean the oil pool of the machine and pour clean lubricating oil into the specified height according to the regulations.
Check whether the cooling water flow is in line with the requirements, whether the waterway is unblocked, or whether there is water leakage.
Check the external part of the air compressor and the motor and take away the tools and all the unrelated items.
Check whether the control and safety protection device of the air compressor is in good condition.
