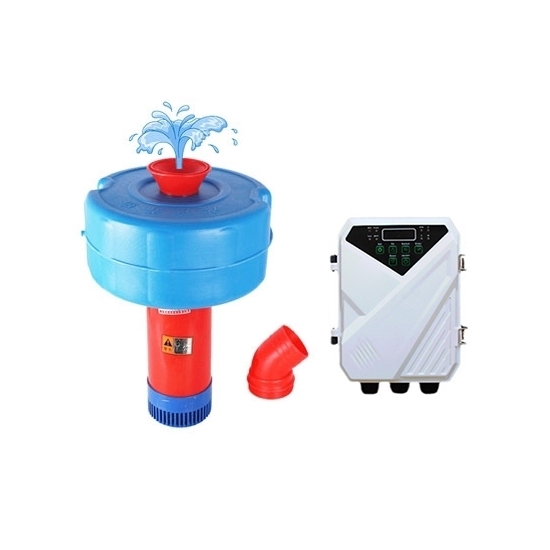

1100W DC 72V Aerator Pump

Pump aerator with a 72V DC controller, power of 1100W, this aeration pump is easy to install, reliable in operation and provides sufficient oxygen to the water and promotes healthy fish and plant growth.

SKU: CCHN-AP1100W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Solar powered air pump for pond oxygenation, 1.1kW aerating pump with 72 volt mppt controller, it is stable, aerates well and provides sufficient oxygen for the fish in the water. the CCHN aerating pump is the perfect solution for oxygenating and circulating water in a variety of applications.

Specifications:

Model	CCHN-DSA30-7-72-1100
Voltage	72V
Optimuminput Voltage (DC)	90-120V
Power	1100W
Max.Flow	30m3/h
Max.Head	7m
Outlet	3 inch
Solar Panel Open Circuit Voltage(VOC)	＜170V
Solar Panel Power	>1.3" Pump Power
Material	ABS Plastic
Pressure	Low Pressure
Application	Fish Pond/Irrigation
Certificate	CE, ISO, SGS
Warranty	12 months

Performance Curves

Installation Drawing

Applications

Tips:
Reasonable use of aerators can not only prevent and reduce floating heads, but also improve water quality, strengthen material circulation in pond water, reduce or eliminate harmful poisons, and promote plankton reproduction.

The use of solar power to provide power to aerators can not only solve the problem of insufficient conventional power supply, but also because solar energy is safe and reliable, no noise, no pollution, energy is available everywhere, is not restricted by regions, does not require fuel, and has no mechanical rotation It has the characteristics of low failure rate, easy maintenance, unattended operation, arbitrary scale, no need to set up transmission lines, and is extremely convenient to move.
