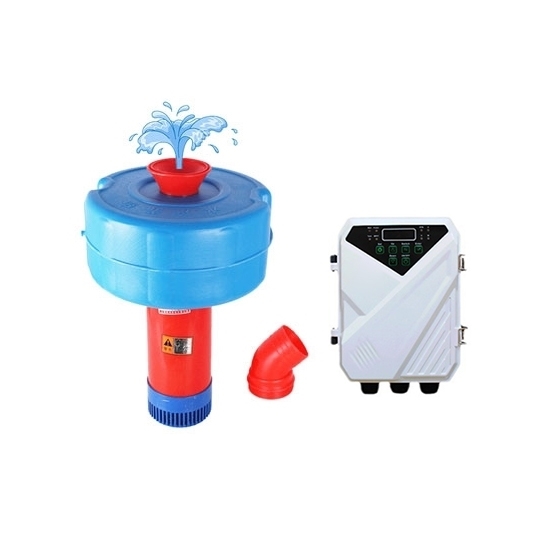

750W DC 48V Aerator Pump

ATO aerator pumps are made from high quality materials to ensure they are both durable and reliable. Aerator air pump power of 750W, with a dc 48V controller, effectively improve water quality and provide sufficient oxygen supply for fish.

SKU: CCHN-AP750W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Solar powered aerators for fish live well, it comes with a 48 volt controller, power of 0.75 kW / 1 hp, flow 25m3/h. Aeration pumps are easy to install and operate with their powerful motors, durable construction, and compact design.

Specifications:

Model	CCHN-DSA25-5-48-750
Voltage	48V
Optimuminput Voltage (DC)	60-90V
Power	750W
Max.Flow	25m3/h
Max.Head	5m
Outlet	3 inch
Solar Panel Open Circuit Voltage(VOC)	＜120V
Solar Panel Power	＞1.3" Pump Power
Material	ABS Plastic
Pressure	Low Pressure
Application	Fish Pond/Irrigation
Certificate	CE, ISO, SGS
Warranty	12 months

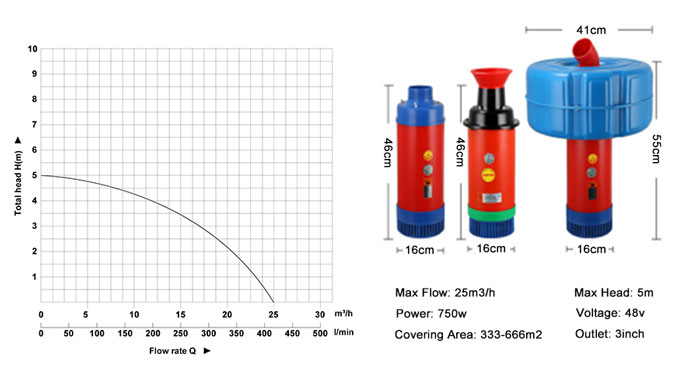

Performance Curves
Installation Drawing

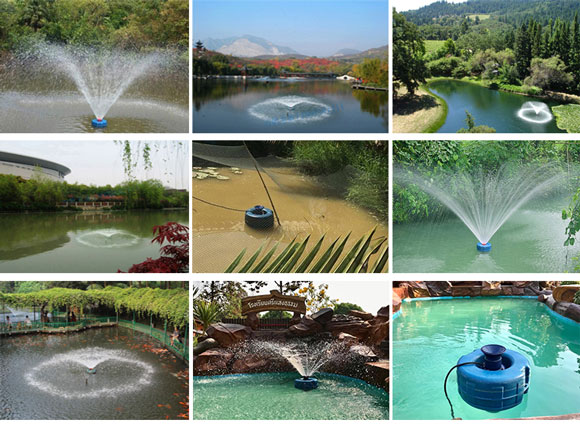

Applications

Tips: Aeration principle
Aerator pump uses its own air pump to blow air into the water to achieve the purpose of increasing the oxygen content in the water. The working parts are driven by a power source such as an electric motor or a diesel engine, so that the "oxygen" in the air is quickly transferred to the aquaculture water body. The physical, chemical and biological functions can be comprehensively used to solve the problems in the aquaculture and increase the yield.
